Engine displacement
1100
2
Model
V11
3
Year
2004
4
Trim
V 11 Le Mans
5
Parts Catalog
Transmission complete I
6
Parts Diagram
Parts Catalog
Gear lever
by
Transmission complete II
Transmission complete I
1
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
17
1
Complete reaction rod black
GU01358890
Not Available
2
Drive shaft
GU01358730
£229,48 Unit Price incl. VAT
3
screw
GU98832430
£10,73 Unit Price incl. VAT
4
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
5
Nut M6
GU92640506
£2,35 Unit Price incl. VAT
6
Protection black
GU01358690
£59,99 Unit Price incl. VAT
7
Protection black
GU01358390
£82,40 Unit Price incl. VAT
8
Washer 6,4x10x0,7
GU14217901
Not Available
9
Hex socket screw M6x16
GU98682316
£1,26 Unit Price incl. VAT
10
screw M10x69
GU30357800
Not Available
11
screw
GU04558700
£13,80 Unit Price incl. VAT
12
Spacer
GU95100303
£10,08 Unit Price incl. VAT
13
Outer plate black
GU01351090
£40,38 Unit Price incl. VAT
14
Washer 10,5x16x1
GU19149800
£0,38 Unit Price incl. VAT
15
Washer 12,2X20X2
GU95008213
£1,98 Unit Price incl. VAT
16
screw M10x59
GU01357731
£10,08 Unit Price incl. VAT
17
Nut M10x1,25
GU92630410
£1,58 Unit Price incl. VAT

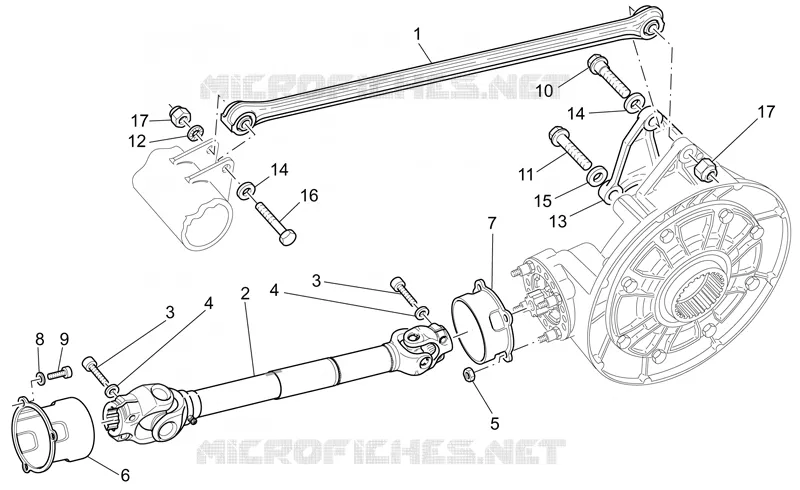

Find the detailed Transmission complete I MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
