Engine displacement
1100
2
Model
V11
3
Year
2004
4
Trim
V 11 Le Mans
5
Parts Catalog
Handlebar - Controls
6
Parts Diagram
Parts Catalog
Clutch control complete
by
Dashboard
Handlebar - Controls
1
2
3
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
18
19
20
20
21
21
22
23
24
25
26
26
27
27
28
28
29
30
31
32
33
34
35
36
1
Right half handlebar
GU01600661
£706,07 Unit Price incl. VAT
2
Left half handlebar
GU01600761
£706,07 Unit Price incl. VAT
3
Throttle w/out hand grip
GU01603400
Not Available
3
Throttle cpl.
GU01603380
£242,04 Unit Price incl. VAT
4
Throttle with hand grip
GU01603480
£30,84 Unit Price incl. VAT
4
RH hand grip
GU30603500
£19,72 Unit Price incl. VAT
5
LH hand grip
AP8118579
£22,01 Unit Price incl. VAT
5
LH hand grip
GU30603000
£20,70 Unit Price incl. VAT
6
Cap
GU27117615
£3,70 Unit Price incl. VAT
7
Adjuster screw
GU27603715
£14,10 Unit Price incl. VAT
8
LH lights selector
GU01738095
£65,90 Unit Price incl. VAT
9
Engine stop-start device
GU01738890
£158,22 Unit Price incl. VAT
10
Choke control
GU01132330
Not Available
11
Choke cable
GU01132830
£19,76 Unit Price incl. VAT
12
Return spring 7x1,1x25
GU94321073
£1,70 Unit Price incl. VAT
13
Gas lever transmission
GU01117560
£21,67 Unit Price incl. VAT
14
screw
GU98257320
£1,06 Unit Price incl. VAT
15
Cover
GU39094200
£0,88 Unit Price incl. VAT
16
screw
GU98622312
Not Available
17
Cap
GU01664030
Not Available
18
O-ring
GU90706099
£1,45 Unit Price incl. VAT
19
Hex socket screw M6x14
GU98682314
£1,26 Unit Price incl. VAT
20
Pin
GU95510420
£7,50 Unit Price incl. VAT
21
Counterweight
GU01602830
£79,94 Unit Price incl. VAT
22
Hex socket screw M6x20
GU98682320
£1,26 Unit Price incl. VAT
22
Hex socket screw M6x25
GU98682325
£1,26 Unit Price incl. VAT
23
Hex socket screw M8x30
GU98682430
£0,70 Unit Price incl. VAT
24
Washer 5,3x10x0,8
GU95008205
£1,26 Unit Price incl. VAT
25
Hose clamp L46 mm
GU01609630
£3,95 Unit Price incl. VAT
26
Ring nut
GU01602930
£13,76 Unit Price incl. VAT
27
Rubber spacer
GU01602130
Not Available
28
Counterweight
GU01602230
Not Available
29
Rubber spacer
GU29132750
£6,38 Unit Price incl. VAT
30
RH rearview mirror
GU01769490
£60,40 Unit Price incl. VAT
31
LH rearview mirror
GU01769890
£60,40 Unit Price incl. VAT
32
Rear gas lever U-bolt
AP8118567
£33,36 Unit Price incl. VAT
33
Front gas lever U-bolt
AP8118566
Not Available
34
Cap screw
AP8118492
£12,65 Unit Price incl. VAT
35
Gas trasmission delivery
GU01117580
£47,70 Unit Price incl. VAT
36
Gas trasmission return
GU01117880
£57,66 Unit Price incl. VAT

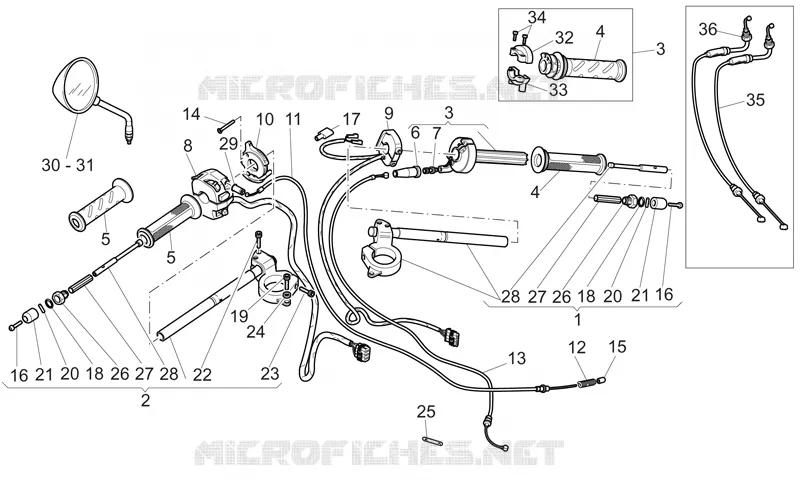

Find the detailed Handlebar - Controls MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
