Engine displacement
1100
2
Model
V11
3
Year
2004
4
Trim
V 11 Le Mans
5
Parts Catalog
Saddle - Rear fairing
6
Parts Diagram
Parts Catalog
Front mudguard
by
Rear frame-Number plate holder
Saddle - Rear fairing
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1
Two-seat saddle
GU01460580
£419,77 Unit Price incl. VAT
1
Two-seat saddle
GU01460560
£302,94 Unit Price incl. VAT
2
Saddle lock
GU02468100
£55,97 Unit Price incl. VAT
3
Cover pillion rider seat red
GU01466490
£349,14 Unit Price incl. VAT
3
Cover pillion rider seat blank
GU01466430
£11,53 Unit Price incl. VAT
3
Saddle cover, black
GU01466491
£242,28 Unit Price incl. VAT
3
Cover pillion rider seat grey
GU01466464
£171,05 Unit Price incl. VAT
3
Cover pillion rider seat red
GU01466465
£58,84 Unit Price incl. VAT
4
Hex socket screw M6x20
GU98370621
£1,02 Unit Price incl. VAT
5
Washer
GU29577860
Not Available
6
Seat cushion
GU01461530
Not Available
6
Seat cushion
GU01461580
Not Available
7
Flanged nut M6
GU92650036
£1,02 Unit Price incl. VAT
8
Rear tail black sticker gray
GU01573164
£141,91 Unit Price incl. VAT
8
Rear tail black
GU01573191
Not Available
8
Rear tail red
GU01573167
£130,37 Unit Price incl. VAT
8
Rear tail black sticker red
GU01573165
£158,06 Unit Price incl. VAT
8
Rear tail black
GU01573166
£108,44 Unit Price incl. VAT
8
Rear tail blank
GU01573160
£138,44 Unit Price incl. VAT
8
Rear tail black
GU01573190
£323,04 Unit Price incl. VAT
9
plate
GU01573760
£21,37 Unit Price incl. VAT
10
Nylon washer 6X17X1
GU66478610
£1,70 Unit Price incl. VAT
11
Hex socket screw M8x30
GU98370831
£2,64 Unit Price incl. VAT
12
Nut with clip M6
GU28576592
£2,04 Unit Price incl. VAT
13
Spacer
GU91120820
£5,26 Unit Price incl. VAT
14
Hex socket screw M8x16
GU98350416
£0,38 Unit Price incl. VAT
15
Document holder
GU01479660
£61,00 Unit Price incl. VAT
16
Operator's handbook I-GB-F-D
GU01900091
Not Available
16
Operator's handbook I-GB-F-D
GU01900090
Not Available
17
Plate
GU01462430
£45,85 Unit Price incl. VAT
18
Rubber spacer
GU93180721
£2,57 Unit Price incl. VAT
19
Washer 6,4x10x0,7
GU14217901
Not Available
20
Hex socket screw M6x20
GU98350320
£0,23 Unit Price incl. VAT
21
screw
GU98250625
£0,96 Unit Price incl. VAT
22
Hex socket screw M6x16 inox
GU98370616
£2,48 Unit Price incl. VAT
23
Flanged nut M6
GU92650036
£1,02 Unit Price incl. VAT
24
Saddle release cable
GU01468830
£30,72 Unit Price incl. VAT
25
Saddle lock
GU02468600
£45,48 Unit Price incl. VAT
26
Washer 8,5x24x2
GU95005312
£1,94 Unit Price incl. VAT
27
Decal set
GU01923391
Not Available
27
Decal set
GU01923390
Not Available
28
Lock kit
GU01736890
Not Available
28
Lock kit
GU01736891
£473,87 Unit Price incl. VAT
29
Sticker "Le Mans" grey
GU01923490
Not Available
29
Sticker "Le Mans" red
GU01923491
Not Available
30
Bike cover
GU30970200
£6,17 Unit Price incl. VAT
31
Washer 6,2X18X1
GU95100118
£1,87 Unit Price incl. VAT
32
Rear fairing decal set
GU01948492
Not Available
33
Decal set, saddle cover
GU01948593
£92,22 Unit Price incl. VAT
33
Decal set, saddle cover
GU01948592
Not Available
34
Decal set
GU01923366
Not Available
34
Decal set
GU01923367
Not Available
35
Rear fairing decal set
GU01948493
£35,76 Unit Price incl. VAT

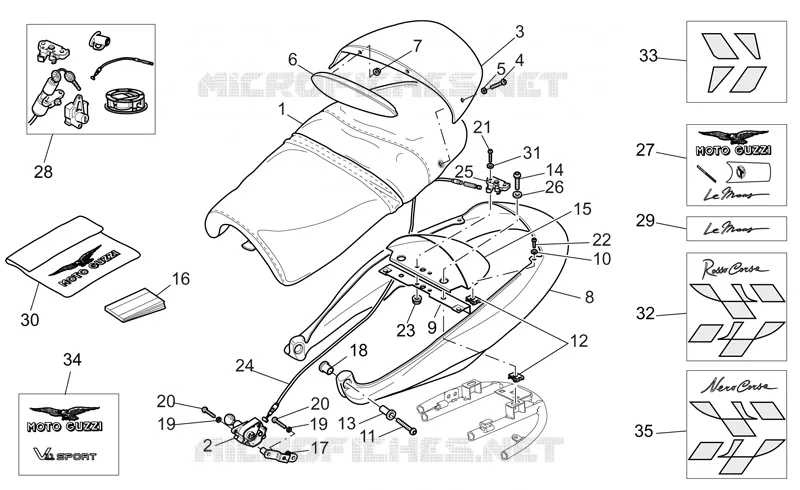

Find the detailed Saddle - Rear fairing MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
