1
Engine displacement
1100
2
Model
V11
3
Year
2004
4
Trim
V 11 Le Mans
5
Parts Catalog
Cylinder head and valves
6
Parts Diagram
Parts Catalog
Crank-case
by
Crankshaft cpl.
Cylinder head and valves
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
1
RH head assy w/h valve
GU01022130
£256,13 Unit Price incl. VAT
2
LH head assy with valve
GU01022230
£2 294,80 Unit Price incl. VAT
3
Exhaust valve guide
GU13036801
£59,48 Unit Price incl. VAT
4
Intake valve guide
GU14036860
£46,54 Unit Price incl. VAT
5
Exhaust valve
GU37036105
Not Available
6
Intake valve
GU37036005
£135,65 Unit Price incl. VAT
7
Snap ring
GU90353016
£1,02 Unit Price incl. VAT
8
Washer 14,2x31x1
GU13037200
£2,75 Unit Price incl. VAT
9
Washer 14,2x31x0,3
GU14037300
£2,26 Unit Price incl. VAT
10
Washer plate
GU01038730
£3,98 Unit Price incl. VAT
11
Outer spring
GU37037405
£17,94 Unit Price incl. VAT
12
Inner spring
GU37037605
£17,58 Unit Price incl. VAT
13
Upper cup
GU37038005
£45,84 Unit Price incl. VAT
14
Valve half-cone
GU12038100
£12,37 Unit Price incl. VAT
15
Oil plug
GU12022600
£36,13 Unit Price incl. VAT
16
O-ring 20,24X2,62
GU90706203
£1,39 Unit Price incl. VAT
17
Column nut
GU13021900
£15,36 Unit Price incl. VAT
18
Washer 10,5X18X0,8
GU95129180
£1,02 Unit Price incl. VAT
19
Stud bolt
GU96508040
£12,31 Unit Price incl. VAT
20
Gasket
GU30022060
£23,64 Unit Price incl. VAT
21
O-ring 9x2
GU90706094
£1,87 Unit Price incl. VAT
22
Rocker arm support
GU14034865
£54,23 Unit Price incl. VAT
23
Nut M10X1,5
GU92603010
£1,54 Unit Price incl. VAT
24
Washer 10,5X21X1
GU14018400
£1,26 Unit Price incl. VAT
25
RH rocker arm assy
GU14030201
£173,05 Unit Price incl. VAT
26
LH rocker arm assy
GU14030401
£173,05 Unit Price incl. VAT
27
Bushing 15x18x43
GU91111511
£53,51 Unit Price incl. VAT
28
Adjuster screw
GU17034050
£15,18 Unit Price incl. VAT
29
Nut
GU10034100
£13,40 Unit Price incl. VAT
30
Spring
GU94322215
£10,33 Unit Price incl. VAT
31
Washer 15,2x26x1
GU90118152
£12,17 Unit Price incl. VAT
32
Washer 15,2x26x0,5
GU10032700
£1,25 Unit Price incl. VAT
33
Rocker shaft
GU12031800
Not Available
34
Hex screw
GU98084316
£1,20 Unit Price incl. VAT
35
Washer 6,5x11x2
GU95120065
£1,02 Unit Price incl. VAT
36
Valves cover
GU01023540
Not Available
36
RH/LH head cover grey
GU01023560
Not Available
37
Spark plug guard grey
GU01941030
Not Available
38
Cover gasket
GU14023760
£9,22 Unit Price incl. VAT
39
Hex socket screw M6x25
GU98682325
£1,26 Unit Price incl. VAT
40
Washer 6,15x11x0,8
GU95008206
£2,48 Unit Price incl. VAT
41
Lower cup 14,2x32x5
GU01037030
£23,16 Unit Price incl. VAT

Find the detailed Cylinder head and valves MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for V 11 Le Mans

Fuel supply

Fuel supply

for V 11 Le Mans from 2004

Internal fuel pump

Internal fuel pump

for V 11 Le Mans from 2004

Air box

Air box

for V 11 Le Mans from 2004

Exhaust unit

Exhaust unit

for V 11 Le Mans from 2004

Oil radiator

Oil radiator

for V 11 Le Mans from 2004

Gear lever

Gear lever

for V 11 Le Mans from 2004

Transmission complete I

Transmission complete I

for V 11 Le Mans from 2004

Transmission complete II

Transmission complete II

for V 11 Le Mans from 2004

Frame

Frame

for V 11 Le Mans from 2004

Lateral stand - Foot rests

Lateral stand - Foot rests

for V 11 Le Mans from 2004

Fuel tank

Fuel tank

for V 11 Le Mans from 2004

Fuel vapour recover system

Fuel vapour recover system

for V 11 Le Mans from 2004

Front body I

Front body I

for V 11 Le Mans from 2004

Front body II

Front body II

for V 11 Le Mans from 2004

Front mudguard

Front mudguard

for V 11 Le Mans from 2004

Saddle - Rear fairing

Saddle - Rear fairing

for V 11 Le Mans from 2004

Rear frame-Number plate holder

Rear frame-Number plate holder

for V 11 Le Mans from 2004

Rear body

Rear body

for V 11 Le Mans from 2004

Front fork I

Front fork I

for V 11 Le Mans from 2004

Marzocchi front fork II

Marzocchi front fork II

for V 11 Le Mans from 2004

Swing arm and rear shock absorber

Swing arm and rear shock absorber

for V 11 Le Mans from 2004

Front wheel

Front wheel

for V 11 Le Mans from 2004

Rear wheel

Rear wheel

for V 11 Le Mans from 2004

Front brake system

Front brake system

for V 11 Le Mans from 2004

Rear brake system

Rear brake system

for V 11 Le Mans from 2004

Clutch control complete

Clutch control complete

for V 11 Le Mans from 2004

Handlebar - Controls

Handlebar - Controls

for V 11 Le Mans from 2004

Dashboard

Dashboard

for V 11 Le Mans from 2004

SPORT headlight

SPORT headlight

for V 11 Le Mans from 2004

Headlight LM-RC-NC

Headlight LM-RC-NC

for V 11 Le Mans from 2004

Taillight

Taillight

for V 11 Le Mans from 2004

Injection electrical system

Injection electrical system

for V 11 Le Mans from 2004

Electrical system

Electrical system

for V 11 Le Mans from 2004

Crank-case

Crank-case

for V 11 Le Mans from 2004

Cylinder head and valves

Cylinder head and valves

for V 11 Le Mans from 2004

Crankshaft cpl.

Crankshaft cpl.

for V 11 Le Mans from 2004

Timing system

Timing system

for V 11 Le Mans from 2004

Throttle body

Throttle body

for V 11 Le Mans from 2004

Supply - Oil pump

Supply - Oil pump

for V 11 Le Mans from 2004

Oil filters

Oil filters

for V 11 Le Mans from 2004

Clutch

Clutch

for V 11 Le Mans from 2004

Transmission cage

Transmission cage

for V 11 Le Mans from 2004

Gear box selector

Gear box selector

for V 11 Le Mans from 2004

Primary gear shaft

Primary gear shaft

for V 11 Le Mans from 2004

Driven shaft

Driven shaft

for V 11 Le Mans from 2004

Generator - Regulator

Generator - Regulator

for V 11 Le Mans from 2004

Starter motor

Starter motor

for V 11 Le Mans from 2004

Specific tools I

Specific tools I

for V 11 Le Mans from 2004

Specific tools II

Specific tools II

for V 11 Le Mans from 2004

Specific tools III

Specific tools III

for V 11 Le Mans from 2004

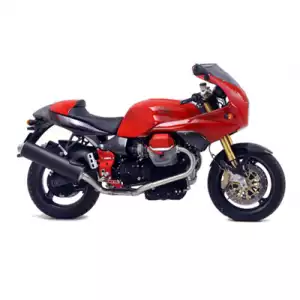

MOTO GUZZI LAVERDA SCARABEO V 11 Le Mans 2004
