Engine displacement
1100
2
Model
V11
3
Year
2004
4
Trim
V 11 Le Mans
5
Parts Catalog
Transmission cage
6
Parts Diagram
Parts Catalog
Clutch
by
Gear box selector
Transmission cage
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
16
17
18
19
19
20
21
22
23
23
24
25
26
27
28
29
30
30
31
32
33
34
1
Gearbox black
GU01200290
£272,36 Unit Price incl. VAT
2
Case cover black
GU01200890
£77,72 Unit Price incl. VAT
3
Cover black
GU01201390
Not Available
4
Cover
GU93180220
£3,68 Unit Price incl. VAT
5
Oil level plug
GU01205730
£92,81 Unit Price incl. VAT
6
Gasket 10x18x1,5
GU01528930
£4,21 Unit Price incl. VAT
7
Oil plug
GU12022600
£36,13 Unit Price incl. VAT
8
O-ring 20,24X2,62
GU90706203
£1,39 Unit Price incl. VAT
9
Oil unload plug M10x1
GU31003766
£15,77 Unit Price incl. VAT
10
Plate
GU04205500
£4,18 Unit Price incl. VAT
11
screw
GU98280620
£1,24 Unit Price incl. VAT
12
Bored screw
GU04239400
£14,76 Unit Price incl. VAT
13
Gasket 12,25
GU12006400
£1,63 Unit Price incl. VAT
14
Breather plug
GU19206501
£16,73 Unit Price incl. VAT
15
Gasket
GU10528900
£4,45 Unit Price incl. VAT
16
Bushing
GU19015020
£10,75 Unit Price incl. VAT
17
Gasket ring 40x56x8/7
GU90404059
£29,57 Unit Price incl. VAT
18
Roller bearing 30x62x16
GU92234730
£103,82 Unit Price incl. VAT
19
Roller bearing 20x52x15
GU92234720
£132,65 Unit Price incl. VAT
20
Roller bearing 17x40x12
GU92234017
£106,79 Unit Price incl. VAT
21
Disc
GU04205100
£7,20 Unit Price incl. VAT
22
Ball bearing 20x52x17
GU92201423
£29,56 Unit Price incl. VAT
23
Bearing 25x52x15
GU92201225
£52,09 Unit Price incl. VAT
24
Ball bearing 40x68x15
GU92201141
£47,04 Unit Price incl. VAT
25
Gasket ring 42x56x7
GU90404255
£30,28 Unit Price incl. VAT
26
Hex socket screw
GU98680345
£1,88 Unit Price incl. VAT
26
Hex socket screw M6x40
GU98680340
£1,26 Unit Price incl. VAT
27
Hex socket screw
GU98680445
£1,02 Unit Price incl. VAT
28
Hex socket screw M8x40
GU98680440
£1,02 Unit Price incl. VAT
29
Hex socket screw M8x30
GU98682430
£0,70 Unit Price incl. VAT
29
Hex socket screw M8x35
GU98680435
£4,98 Unit Price incl. VAT
30
Hex socket screw M6x20
GU98682330
£1,26 Unit Price incl. VAT
31
Hex socket screw M6x35
GU98680335
£0,35 Unit Price incl. VAT
32
Washer 6,4x12x1,2
GU95008306
£0,58 Unit Price incl. VAT
33
Cover
GU93180245
£2,63 Unit Price incl. VAT
34
Complete gearbox black
GU01991590
Not Available

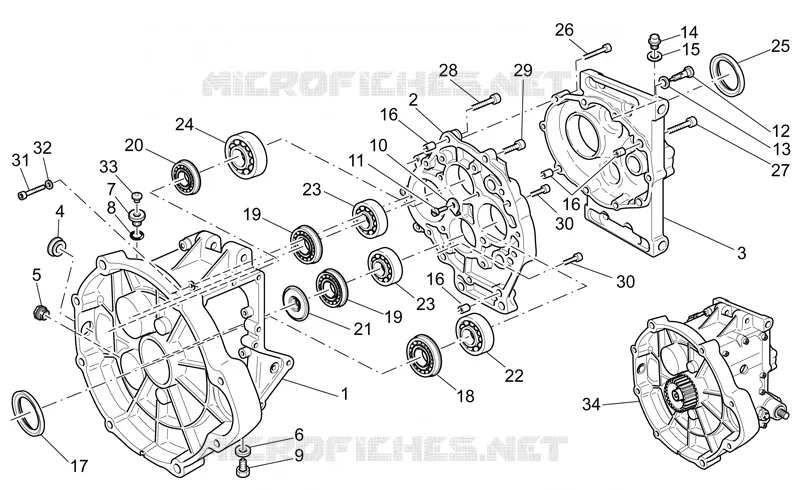

Find the detailed Transmission cage MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
