Engine displacement
1100
2
Model
V11
3
Year
2004
4
Trim
V 11 Le Mans
5
Parts Catalog
Front brake system
6
Parts Diagram
Parts Catalog
Rear wheel
by
Rear brake system
Front brake system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
19
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1
Front brake master cyl.black
GU01660140
£386,33 Unit Price incl. VAT
2
Front brake lever
GU01605640
Not Available
3
Ball
GU92295708
£0,70 Unit Price incl. VAT
4
Pin
GU27604815
£19,98 Unit Price incl. VAT
5
Microswitch
GU30749860
£30,79 Unit Price incl. VAT
6
U-bolt
GU01530582
£67,04 Unit Price incl. VAT
7
Pump connection overhaul unit
GU19659500
£22,94 Unit Price incl. VAT
8
Brake oil tank
GU30665000
Not Available
9
Tank cover
GU30661100
£46,26 Unit Price incl. VAT
10
Tank support
GU01661460
£21,28 Unit Price incl. VAT
11
screw
GU98230613
£1,42 Unit Price incl. VAT
12
Nut
GU92601002
£1,02 Unit Price incl. VAT
13
Screw w/ flange M6x20
GU98223620
£1,58 Unit Price incl. VAT
14
Spacer 6,2x8x13,5
GU91180617
£7,60 Unit Price incl. VAT
15
Rubber spacer 8x18
GU91551167
£1,43 Unit Price incl. VAT
16
Nut
GU92660604
£2,33 Unit Price incl. VAT
17
Oil pipe
GU00823950050
£26,57 Unit Price incl. VAT
18
Hose clamp D9
GU61108500
£0,96 Unit Price incl. VAT
19
Oil pipe screw
AP8113003
£2,08 Unit Price incl. VAT
20
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
21
Complete brake hose, dark grey
GU01658831
Not Available
22
RH Front brake caliper, gold
GU01652330
£521,81 Unit Price incl. VAT
23
LH Front brake caliper, gold
GU01652230
£542,16 Unit Price incl. VAT
24
screw M10x30
GU98683530
Not Available
25
Washer 10,5x16x1
GU19149800
£0,38 Unit Price incl. VAT
26
screw
GU98200214
Not Available
27
Rubber spacer
GU01658230
£12,79 Unit Price incl. VAT
28
Cable-guide
GU01658430
£14,27 Unit Price incl. VAT
29
Hex socket screw M6x20
GU98350310
£1,26 Unit Price incl. VAT
30
Washer 6,4x12x1,2
GU95008306
£0,58 Unit Price incl. VAT
31
Pads pair
GU01654630
£52,94 Unit Price incl. VAT
32
Bleeder+cap
GU01659230
£22,54 Unit Price incl. VAT
33
Pins+Caliper springs
GU01659130
£44,40 Unit Price incl. VAT
34
Spring
GU01659131
£46,15 Unit Price incl. VAT
35
Spring
GU30665860
£1,48 Unit Price incl. VAT

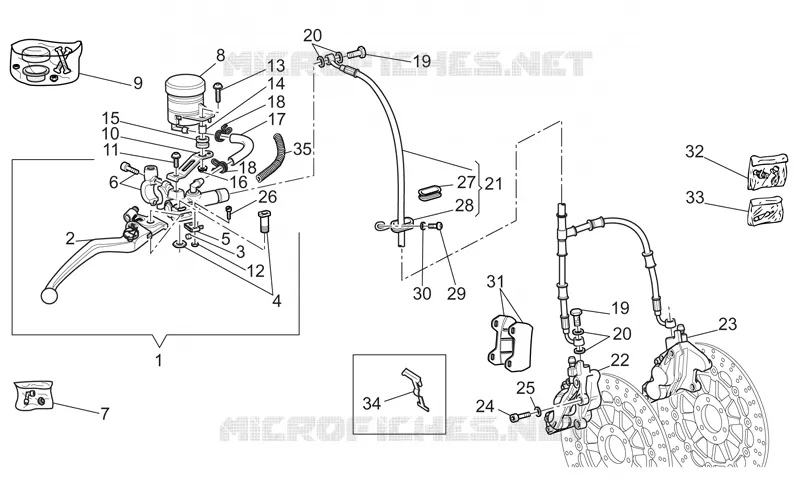

Find the detailed Front brake system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
