Engine displacement
1100
2
Model
V11
3
Year
2004
4
Trim
V 11 Le Mans
5
Parts Catalog
Internal fuel pump
6
Parts Diagram
Parts Catalog
Fuel supply
by
Air box
Internal fuel pump
1
2
3
4
5
1
Fuel pump cpl.
GU01107290
Not Available
2
Fuel filter
GU01106090
£81,40 Unit Price incl. VAT
3
Thermistor
GU01103090
£122,50 Unit Price incl. VAT
4
Gasket
GU01107490
£63,04 Unit Price incl. VAT
5
Hose clamp 11,3
GU01108490
£8,23 Unit Price incl. VAT

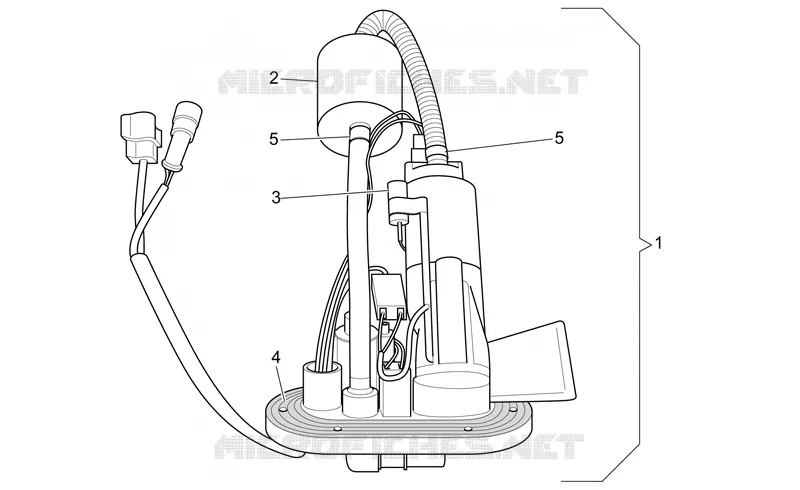

Find the detailed Internal fuel pump MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
