Engine displacement
1100
2
Model
V11
3
Year
2004
4
Trim
V 11 Le Mans
5
Parts Catalog
Swing arm and rear shock absorber
6
Parts Diagram
Parts Catalog
Marzocchi front fork II
by
Front wheel
Swing arm and rear shock absorber
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
16
1
Swingarm
GU01540230
£256,13 Unit Price incl. VAT
2
Ball bearing
GU92218418
£42,37 Unit Price incl. VAT
3
Pin
GU01547060
£61,82 Unit Price incl. VAT
4
Nut
GU01547860
£43,52 Unit Price incl. VAT
5
Shock absorber "Ohlins"
GU01550291
Not Available
5
Shock absorber Sach-Boge
GU02550201
£421,18 Unit Price incl. VAT
6
screw
GU98083670
£7,50 Unit Price incl. VAT
7
Washer 12,2X20X2
GU95008213
£1,98 Unit Price incl. VAT
8
Nut
GU92640513
£4,92 Unit Price incl. VAT
9
Nut
GU92640512
£2,33 Unit Price incl. VAT
10
Lower screw
GU98680616
£39,20 Unit Price incl. VAT
11
Support plate
GU01557985
Not Available
12
Hose clamp
GU02107300
£12,64 Unit Price incl. VAT
13
Screw w/ flange M6x16 inox
GU98210616
£3,95 Unit Price incl. VAT
14
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
15
Rubber spacer
GU00823915045
£18,92 Unit Price incl. VAT
16
Washer 13x18x1,7
GU30217900
£1,58 Unit Price incl. VAT

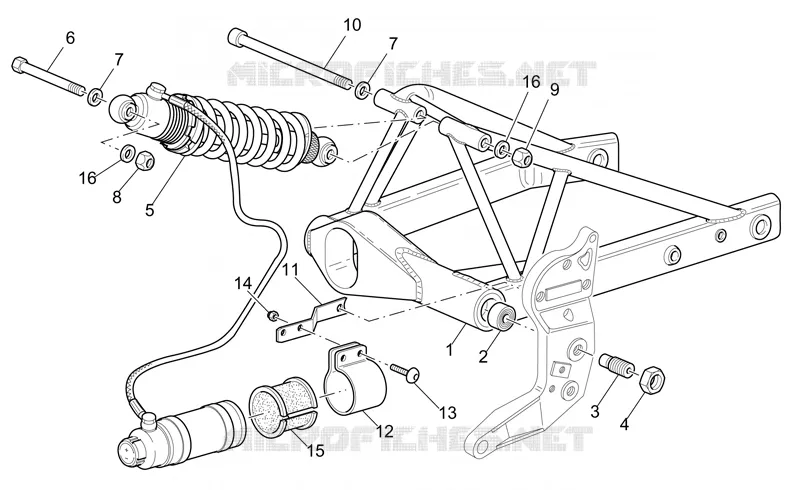

Find the detailed Swing arm and rear shock absorber MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
