1
Dashboard complete
GU01760090
£1 307,59 Unit Price incl. VAT
1
Dashboard complete
GU01760091
Not Available
2
Speedometer
GU01761560
Not Available
2
Speedometer
GU01762490
£317,58 Unit Price incl. VAT
3
Lamp 12V-3W
GU93450120
Not Available
4
Odometer cable
GU01760492
Not Available
5
Odometer gear
GU01762560
Not Available
6
Washer 6,4x12x1,2
GU95008306
£0,58 Unit Price incl. VAT
7
Rubber spacer
GU91551168
£3,02 Unit Price incl. VAT
8
Gasket
GU03762370
£7,99 Unit Price incl. VAT
9
Electronic revolution counter
GU01767260
Not Available
10
LH plate
GU01766061
£36,68 Unit Price incl. VAT
11
RH plate
GU01766060
£40,49 Unit Price incl. VAT
12
Dashboard lower support
GU03764060
£82,02 Unit Price incl. VAT
13
Support rubber part
GU02762301
£12,35 Unit Price incl. VAT
14
Odometer support
GU01762090
Not Available
15
Cap nut
GU92787205
£1,68 Unit Price incl. VAT
16
Main switch - steering lock
GU01782500
Not Available
17
Non indented key blank
GU30735500
£10,22 Unit Price incl. VAT
18
Socket support black
GU01766065
£22,36 Unit Price incl. VAT
19
Silent-block
GU93222023
£15,01 Unit Price incl. VAT
20
Lamp holder end section
GU93400012
Not Available
21
Hex socket screw M6x10
GU98370609
£2,04 Unit Price incl. VAT
22
Special screw M8x15
GU97260415
£14,35 Unit Price incl. VAT
23
Flanged nut M6x9
GU92660007
£0,71 Unit Price incl. VAT
24
Hex socket screw M6x16
GU98682316
£1,26 Unit Price incl. VAT
25
Dashboard cable
GU01747290
£170,75 Unit Price incl. VAT
26
Lamp-holding cover black
GU01766240
Not Available
27
screw
GU98872120
£1,20 Unit Price incl. VAT
28
Gasket
GU02768200
£3,61 Unit Price incl. VAT
29
Guard
GU02768400
£11,96 Unit Price incl. VAT
30
Panel with lenses
GU03781150
£27,42 Unit Price incl. VAT
31
Indicator light box
GU02766300
Not Available
32
Washer
GU95008304
£0,62 Unit Price incl. VAT
33
Lock kit
GU01736890
Not Available
33
Lock kit
GU01736891
£473,87 Unit Price incl. VAT
34
Lamp
GU93450140
Not Available
35
Lampholder
GU02768600
£9,24 Unit Price incl. VAT
36
Reset button
GU03762870
£13,70 Unit Price incl. VAT

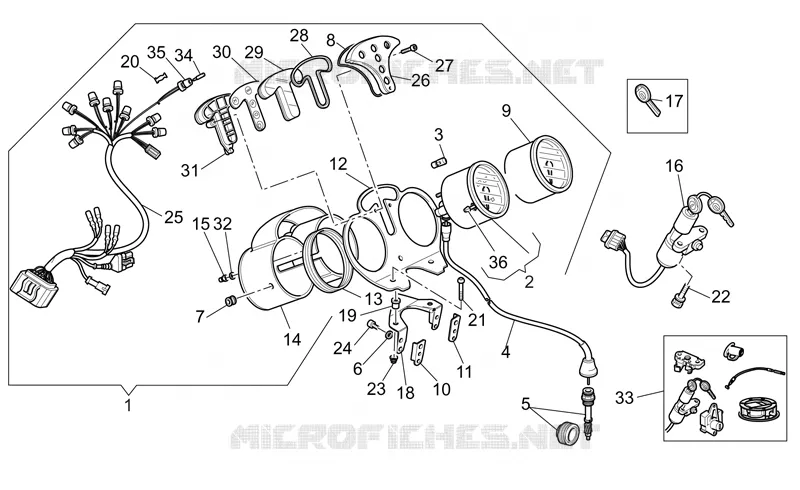

Find the detailed Dashboard MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
