Engine displacement
1100
2
Model
V11
3
Year
2004
4
Trim
V 11 Le Mans
5
Parts Catalog
Front fork I
6
Parts Diagram
Parts Catalog
Rear body
by
Marzocchi front fork II
Front fork I
1
2
3
4
4
4
5
6
7
8
9
10
10
11
11
12
12
13
14
15
16
17
17
18
19
20
21
1
Marzocchi front fork
GU01490295
Not Available
2
Steering shock absorber
GU01530291
£156,50 Unit Price incl. VAT
3
screw M8x40
GU98370840
£6,71 Unit Price incl. VAT
4
Washer 8,4x14,57x1,6
GU95005308
£1,26 Unit Price incl. VAT
5
Spacer
GU91180812
£1,52 Unit Price incl. VAT
6
Nut
GU92630108
£1,02 Unit Price incl. VAT
7
Nut
GU92606408
£2,35 Unit Price incl. VAT
8
Nut
GU92700241
£12,97 Unit Price incl. VAT
9
Washer
GU30516500
£5,06 Unit Price incl. VAT
10
Dust cover
GU14517000
£7,92 Unit Price incl. VAT
11
Clearance washer
GU14516700
£22,25 Unit Price incl. VAT
12
Tap.roller bearing
GU92249225
£80,94 Unit Price incl. VAT
13
Head fixing nut
GU30513401
£18,70 Unit Price incl. VAT
14
Plug
GU23943410
£3,06 Unit Price incl. VAT
15
Stem base
GU01494060
£1 112,32 Unit Price incl. VAT
16
Fork upper plate
GU01493160
£253,81 Unit Price incl. VAT
17
Hex socket screw M8x30
GU98682430
£0,70 Unit Price incl. VAT
18
Coupled sleeve "Ohlins"
GU01490290
£1 587,14 Unit Price incl. VAT
18
Front fork "Ohlins"
GU01490283
£6 942,92 Unit Price incl. VAT
19
Front fork revision kit
AP8123975
Not Available
20
Front fork oil 1 lt.
AP8116071
£80,99 Unit Price incl. VAT
21
Spring
GU01526683
Not Available

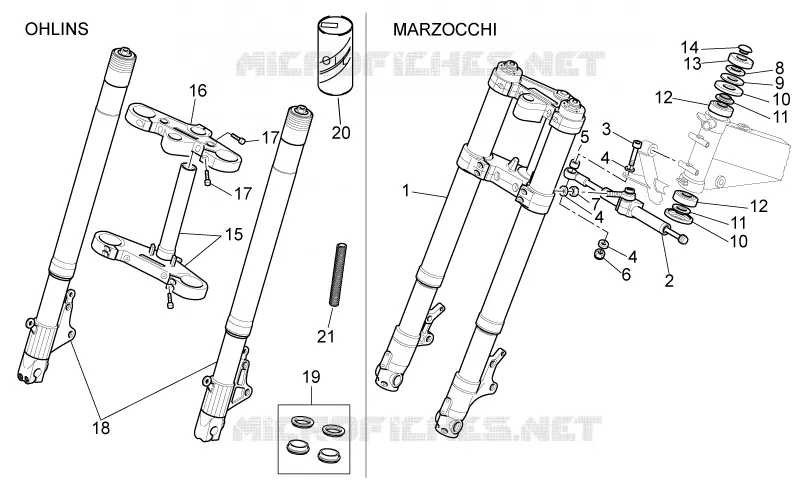

Find the detailed Front fork I MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
