Engine displacement
1100
2
Model
V11
3
Year
2004
4
Trim
V 11 Le Mans
5
Parts Catalog
Front body II
6
Parts Diagram
Parts Catalog
Front body I
by
Front mudguard
Front body II
1
2
3
4
4
4
5
5
5
6
7
8
9
10
11
11
12
13
14
15
15
15
15
16
1
RH rearview mirror FAR
GU01769461
£151,60 Unit Price incl. VAT
1
RH rearview mirror FU-HWA
GU01769462
Not Available
2
LH rearview mirror FAR
GU01769861
£149,42 Unit Price incl. VAT
2
LH rearview mirror FU-HWA
GU01769862
Not Available
3
Front fairing-dashboard lockup
GU01575863
Not Available
4
Clip M6
GU28576591
£1,09 Unit Price incl. VAT
5
Hex socket screw M6x20
GU98370621
£1,02 Unit Price incl. VAT
6
Hex socket screw M6x35
GU98370635
£1,94 Unit Price incl. VAT
7
Cap nut M6x1
GU92787006
£7,98 Unit Price incl. VAT
8
Washer 6,4x10x0,7
GU14217901
Not Available
9
RH plate
GU01577760
£15,05 Unit Price incl. VAT
10
LH plate
GU01577761
£15,05 Unit Price incl. VAT
11
Antivibration bush M6
GU93231606
£1,79 Unit Price incl. VAT
12
RH support
GU01577662
£9,47 Unit Price incl. VAT
13
LH support
GU01577663
£16,16 Unit Price incl. VAT
14
screw
GU98890380
£4,27 Unit Price incl. VAT
15
Washer
GU29577860
Not Available
16
Rubber spacer
GU01769761
£4,87 Unit Price incl. VAT

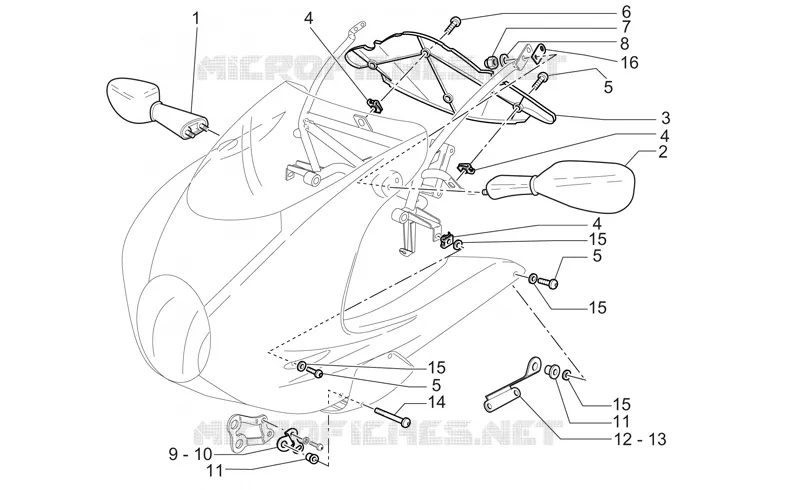

Find the detailed Front body II MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
