Engine displacement
1100
2
Model
V11
3
Year
2004
4
Trim
V 11 Le Mans
5
Parts Catalog
Specific tools I
6
Parts Diagram
Parts Catalog
Starter motor
by
Specific tools II
Specific tools I
1
2
3
4
5
6
7
8
1
Tool gearbox resting onto vice
GU01912530
£66,02 Unit Price incl. VAT
2
Flexible couplings assembly
GU01966330
£120,02 Unit Price incl. VAT
3
Locking mm34 on gear 1a shaft
GU01913430
£91,57 Unit Price incl. VAT
4
Locking mm28 on gear 1a shaft
GU01913830
£87,97 Unit Price incl. VAT
5
Locking mm24 on gear 1a shaft
GU01913730
£77,68 Unit Price incl. VAT
6
Central stand
GU00979717
£275,76 Unit Price incl. VAT
7
Software injection/ignition
GU00979715
£1 242,22 Unit Price incl. VAT
8
Axone-battery charger 230V50Hz
AP8140595
Not Available
8
Axone-battery charger 110V60Hz
AP8202311
Not Available

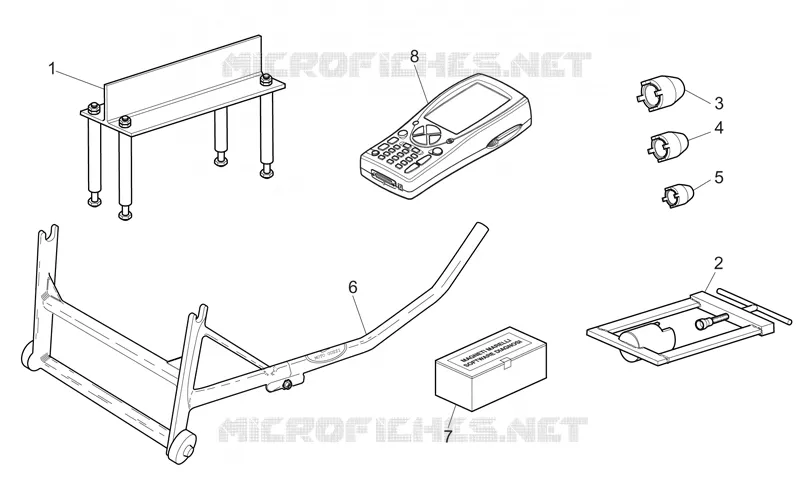

Find the detailed Specific tools I MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
