Engine displacement
1100
2
Model
V11
3
Year
2004
4
Trim
V 11 Le Mans
5
Parts Catalog
Air box
6
Parts Diagram
Parts Catalog
Internal fuel pump
by
Exhaust unit
Air box
19
17
18
16
15
15
14
14
14
13
12
12
11
10
9
8
7
6
5
5
4
3
2
1
20
1
Air box
GU01114031
£381,12 Unit Price incl. VAT
2
Air filter
GU30113600
£22,42 Unit Price incl. VAT
3
Filter cover
GU01113490
£49,61 Unit Price incl. VAT
4
Hose
GU37114806
£14,45 Unit Price incl. VAT
5
Hose clamp
GU93305040
£10,12 Unit Price incl. VAT
6
RH plate
GU01116730
£13,76 Unit Price incl. VAT
7
LH plate
GU01116731
£13,33 Unit Price incl. VAT
8
Front plate
GU01114130
Not Available
9
Clip M6
GU28576591
£1,09 Unit Price incl. VAT
10
screw
GU98106082
Not Available
11
screw M6x30
GU98084330
£1,26 Unit Price incl. VAT
12
Hex socket screw M6x12
GU98350312
£2,36 Unit Price incl. VAT
13
Hex socket screw
GU98350210
£1,26 Unit Price incl. VAT
14
Washer 6,15x11x0,8
GU95008206
£2,48 Unit Price incl. VAT
15
Intake hose
GU02116901
£47,70 Unit Price incl. VAT
16
Rubber pipe 12,5X7,8 5/16"
GU00823956080
£45,66 Unit Price incl. VAT
17
Bored screw
GU95990084
£39,22 Unit Price incl. VAT
18
Gasket
GU01154230
£2,34 Unit Price incl. VAT
19
Hand cone-type
GU01114400
£8,32 Unit Price incl. VAT
20
Joint
GU30107401
£52,03 Unit Price incl. VAT

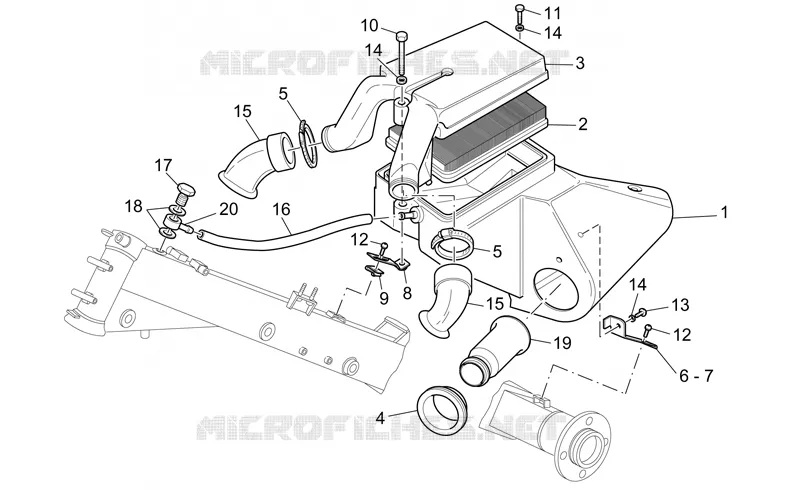

Find the detailed Air box MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
