Engine displacement
1100
2
Model
V11
3
Year
2004
4
Trim
V 11 Le Mans
5
Parts Catalog
Front body I
6
Parts Diagram
Parts Catalog
Fuel vapour recover system
by
Front body II
Front body I
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
1
Windshield
GU01577260
£282,48 Unit Price incl. VAT
2
LH lat.fairing, black
GU01575494
£375,97 Unit Price incl. VAT
2
LH fairing blank
GU01575490
£545,24 Unit Price incl. VAT
2
LH lat.fairing, red
GU01575493
£628,99 Unit Price incl. VAT
2
LH lat.fairing, black
GU01575491
£496,09 Unit Price incl. VAT
2
LH lat.fairing, red
GU01575492
£495,43 Unit Price incl. VAT
3
Lower centre fairing black
GU01575765
£202,80 Unit Price incl. VAT
3
Lower centre fairing red
GU01575766
Not Available
3
Lower centre fairing black
GU01575791
Not Available
3
Lower centre fairing red
GU01575790
£202,80 Unit Price incl. VAT
3
Lower centre fairing blank
GU01575760
£36,92 Unit Price incl. VAT
4
RH fairing black
GU01575594
Not Available
4
RH fairing black
GU01575591
£496,09 Unit Price incl. VAT
4
RH fairing red
GU01575592
Not Available
4
RH fairing blank
GU01575590
£628,99 Unit Price incl. VAT
4
RH fairing red
GU01575593
£628,99 Unit Price incl. VAT
5
Upper centre fairing black
GU01575665
£219,20 Unit Price incl. VAT
5
Upper centre fairing red
GU01575666
£219,20 Unit Price incl. VAT
5
Upper centre fairing red
GU01575690
£219,20 Unit Price incl. VAT
5
Upper centre fairing black
GU01575691
£219,20 Unit Price incl. VAT
5
Upper centre fairing blank
GU01575662
£267,40 Unit Price incl. VAT
6
LH air vent black
GU01576391
£43,84 Unit Price incl. VAT
6
LH air vent black
GU01576366
£158,04 Unit Price incl. VAT
6
LH air vent grey
GU01576365
Not Available
7
Sleeve protection
GU01574760
£12,00 Unit Price incl. VAT
8
RH air vent black
GU01576291
£43,84 Unit Price incl. VAT
8
RH air vent grey
GU01576265
£109,49 Unit Price incl. VAT
8
RH air vent black
GU01576266
£30,00 Unit Price incl. VAT
9
Decal "Aquila"
GU01926190
Not Available
10
Nut
GU92630205
£0,88 Unit Price incl. VAT
11
Nylon washer 5,5X12X1
GU30577800
£1,02 Unit Price incl. VAT
12
Washer
GU30577801
£1,20 Unit Price incl. VAT
13
screw
GU98370515
£2,36 Unit Price incl. VAT
14
Cap nut
GU92787205
£1,68 Unit Price incl. VAT
15
Hex socket screw M6x16 inox
GU98370616
£2,48 Unit Price incl. VAT
16
Hex socket screw
GU98230512
Not Available
17
Hex socket screw M6x10
GU98370609
£2,04 Unit Price incl. VAT
18
screw
GU98890370
Not Available
19
Plate
GU01588360
£49,45 Unit Price incl. VAT
20
Clip M6
GU28576591
£1,09 Unit Price incl. VAT
21
Splash guard
GU01571860
£14,83 Unit Price incl. VAT
22
Nut
GU92650135
£2,33 Unit Price incl. VAT
23
Hex socket screw
GU98230512
Not Available
24
Pin
GU23922210
£1,33 Unit Price incl. VAT
25
Decal set, RH fairing
GU01948193
£26,53 Unit Price incl. VAT
25
Decal set, RH fairing
GU01948192
Not Available
26
Decal set, Central fairing
GU01948393
£99,53 Unit Price incl. VAT
26
Decal set, Central fairing
GU01948392
£99,56 Unit Price incl. VAT
27
Decal set, LH fairing
GU01948292
Not Available
27
Decal set, LH fairing
GU01948293
£34,61 Unit Price incl. VAT

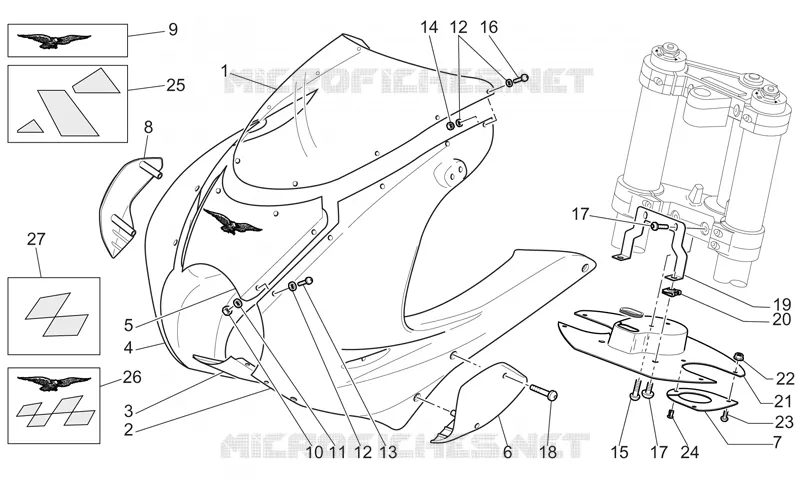

Find the detailed Front body I MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
