Engine displacement
1100
2
Model
V11
3
Year
2004
4
Trim
V 11 Le Mans
5
Parts Catalog
Throttle body
6
Parts Diagram
Parts Catalog
Timing system
by
Supply - Oil pump
Throttle body
1
1
2
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
17
1
Throttle assy
GU01112590
£519,17 Unit Price incl. VAT
1
Throttle assy
GU01112560
£533,08 Unit Price incl. VAT
2
Potentiometer
GU01530500
£510,00 Unit Price incl. VAT
3
RH manifold
GU01115000
Not Available
4
Maintenance
GU01110590
£101,22 Unit Price incl. VAT
5
Hex socket screw
GU98350210
£1,26 Unit Price incl. VAT
6
Washer 5,9X3X0,8
GU29217960
£1,20 Unit Price incl. VAT
7
Gasket
GU28115560
£2,16 Unit Price incl. VAT
8
LH manifold
GU01115001
Not Available
9
Hex socket screw M6x25
GU98682325
£1,26 Unit Price incl. VAT
10
Washer 6,15x11x0,8
GU95008206
£2,48 Unit Price incl. VAT
11
screw M6x10
GU98310609
£1,20 Unit Price incl. VAT
12
Washer 6,25x10x1,5
GU95100116
£1,60 Unit Price incl. VAT
13
Hose clamp 57x59,5x10
GU93305057
£10,75 Unit Price incl. VAT
14
Hose
GU01114390
£25,00 Unit Price incl. VAT
15
Hose clamp 61/65,5
GU93305061
£10,04 Unit Price incl. VAT
16
Hose
GU01114500
£20,68 Unit Price incl. VAT
17
Injector kit complete
GU01530504
£994,60 Unit Price incl. VAT

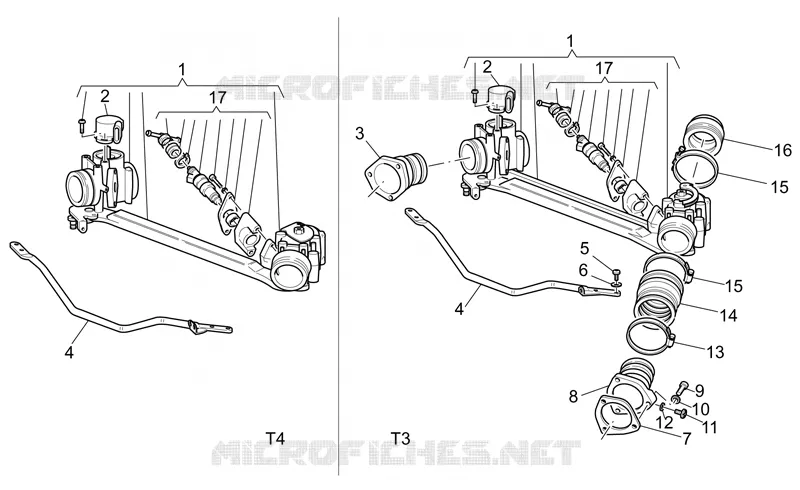

Find the detailed Throttle body MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
