Engine displacement
1100
2
Model
CALIFORNIA
3
Year
2002
4
Trim
California EV Touring PI
5
Parts Catalog
Crank-case
6
Parts Diagram
Parts Catalog
Windshield
by
Heads
Crank-case
1
2
3
4
5
6
7
8
9
10
11
12
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
30
31
32
33
34
35
36
37
38
39
1
Crankcase black
GU03000730
Not Available
2
Disc
GU12003900
Not Available
3
Stud bolt M8x66
GU96508066
£50,56 Unit Price incl. VAT
4
Washer 8,4x14,57x1,6
GU95005308
£1,26 Unit Price incl. VAT
5
Cap nut M8x1,25
GU92787008
£1,34 Unit Price incl. VAT
6
Coupling bush
GU12018900
£10,75 Unit Price incl. VAT
7
Stud bolt M8x75
GU96508075
£13,44 Unit Price incl. VAT
8
Nut M8x1,25
GU92606208
£0,94 Unit Price incl. VAT
9
Pin
GU95512081
£4,34 Unit Price incl. VAT
10
Complete flange
GU14011900
Not Available
10
Flange min.0,2 mm
GU14011901
£50,76 Unit Price incl. VAT
11
Pin
GU12012200
£15,28 Unit Price incl. VAT
12
Hex screw M8x25
GU98084425
£1,02 Unit Price incl. VAT
13
Washer 8,4x15
GU03270300
£0,19 Unit Price incl. VAT
14
Cover gasket
GU12001200
Not Available
15
Timing cover black
GU03001460
Not Available
16
Hex socket screw M6x25
GU98682325
£1,26 Unit Price incl. VAT
17
Hex socket screw M6x35
GU98680335
£0,35 Unit Price incl. VAT
18
Adhesive label
GU02517700
Not Available
19
Gasket ring 28x38x7
GU90402840
£15,29 Unit Price incl. VAT
20
Flange
GU18001150
£13,20 Unit Price incl. VAT
21
Generator cover polished plated
GU03001600
£177,36 Unit Price incl. VAT
22
screw
GU98310631
£1,58 Unit Price incl. VAT
23
Rubber spacer
GU19007700
£4,44 Unit Price incl. VAT
24
Sump gasket
GU14003600
£11,04 Unit Price incl. VAT
25
screw
GU98082390
£5,23 Unit Price incl. VAT
26
Oil sump black
GU03003561
Not Available
27
Hex socket screw M6x25
GU98682325
£1,26 Unit Price incl. VAT
28
Washer 6,15x11x0,8
GU95008206
£2,48 Unit Price incl. VAT
29
Oil unload plug
GU12003702
£12,94 Unit Price incl. VAT
30
Gasket 20,1x28x2
GU95100709
£5,29 Unit Price incl. VAT
31
Oil plug
GU30004910
£10,85 Unit Price incl. VAT
32
O-ring 17,86X2,62
GU90706178
£0,98 Unit Price incl. VAT
33
Gaskets set
GU30999060
Not Available
34
Engine oil seal kit
GU17999550
Not Available
35
Engine black
GU03991031
Not Available
36
Gasket
GU12011800
£3,74 Unit Price incl. VAT
37
Complete flange
GU12011400
Not Available
37
Flange min.0,4 mm
GU12011402
£61,15 Unit Price incl. VAT
37
Flange min.0,6 mm
GU12011403
£61,15 Unit Price incl. VAT
37
Flange min.0,2 mm
GU12011401
£63,46 Unit Price incl. VAT
38
Pin
GU12011700
£14,52 Unit Price incl. VAT
39
Gasket ring
GU90405367
£35,53 Unit Price incl. VAT

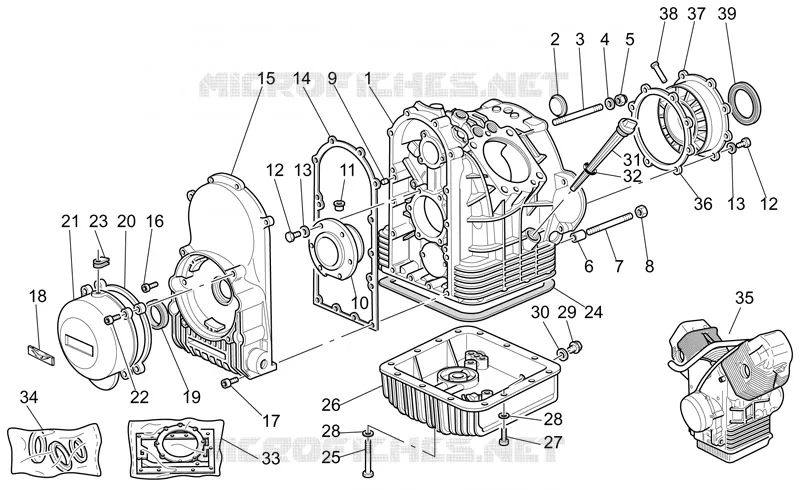

Find the detailed Crank-case MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
