1
Engine displacement
1100
2
Model
CALIFORNIA
3
Year
2002
4
Trim
California EV Touring PI
5
Parts Catalog
Dashboard
6
Parts Diagram
Parts Catalog
Handlebar - Controls
by
Front lights
Dashboard
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
1
Speedometer
GU03761570
£259,00 Unit Price incl. VAT
1
Speedometer
GU03762470
Not Available
2
Dashboard complete
GU03760070
£1 420,15 Unit Price incl. VAT
2
Dashboard complete
GU03760071
Not Available
3
Rubber spacer
GU91551168
£3,02 Unit Price incl. VAT
4
Odometer cable
GU03760465
£20,36 Unit Price incl. VAT
5
Odometer gear
GU03762550
£114,01 Unit Price incl. VAT
6
Main switch - steering lock
GU01782500
Not Available
7
Lampholder
GU02768600
£9,24 Unit Price incl. VAT
8
Lamp 12V-3W
GU93450120
Not Available
9
Electronic revolution counter
GU03767270
Not Available
10
Gasket
GU03762370
£7,99 Unit Price incl. VAT
11
screw
GU98872110
£1,32 Unit Price incl. VAT
12
Dashboard lower support
GU02764000
£50,32 Unit Price incl. VAT
13
Support rubber part
GU02762301
£12,35 Unit Price incl. VAT
14
Odometer support
GU03762070
£55,27 Unit Price incl. VAT
15
Tachometer support
GU03761970
£54,13 Unit Price incl. VAT
16
Washer 8,4X15X1,5
GU95008208
£1,27 Unit Price incl. VAT
17
Non indented key blank
GU30735500
£10,22 Unit Price incl. VAT
18
Socket support
GU01766031
£33,50 Unit Price incl. VAT
19
Silent-block
GU93222020
Not Available
20
Lamp holder end section
GU93400012
Not Available
21
Hex socket screw M6x10
GU98370609
£2,04 Unit Price incl. VAT
22
Dashboard cable
GU03747265
£126,91 Unit Price incl. VAT
23
Flanged nut M6x9
GU92660007
£0,71 Unit Price incl. VAT
24
Hex socket screw
GU98692318
£1,02 Unit Price incl. VAT
25
Washer 6,4x12x1,2
GU95008306
£0,58 Unit Price incl. VAT
26
Indicator light box
GU31766283
Not Available
27
screw
GU98872120
£1,20 Unit Price incl. VAT
28
Gasket
GU02768200
£3,61 Unit Price incl. VAT
29
Guard
GU02768400
£11,96 Unit Price incl. VAT
30
Panel with lenses
GU02781101
Not Available
31
Indicator light box
GU02766300
Not Available
32
Lower cover
GU03766570
£52,93 Unit Price incl. VAT
33
Special screw M8x15
GU97260415
£14,35 Unit Price incl. VAT
34
Lamp
GU93450140
Not Available
35
Washer
GU95021206
£2,47 Unit Price incl. VAT
36
Reset button
GU31762883
£13,54 Unit Price incl. VAT

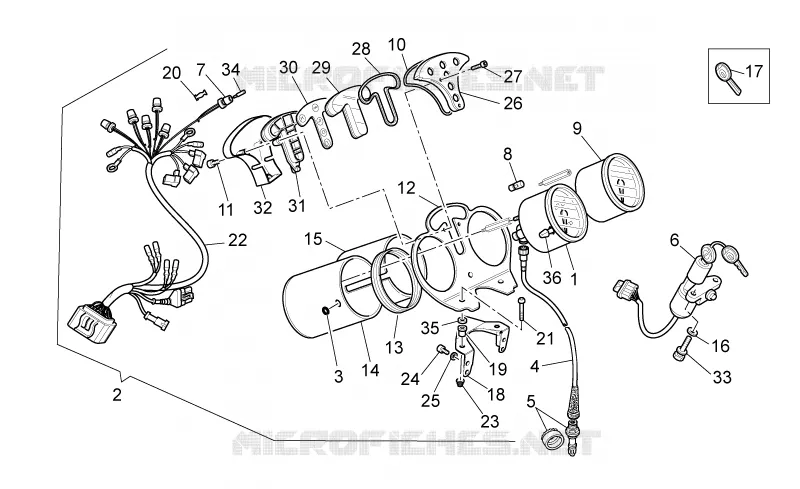

Find the detailed Dashboard MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
