1
Engine displacement
1100
2
Model
CALIFORNIA
3
Year
2002
4
Trim
California EV Touring PI
5
Parts Catalog
Front mudguard
6
Parts Diagram
Parts Catalog
Saddle-Central bod
by
Rear mudguard
Front mudguard
1
2
3
4
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
1
Front mudguard red vintage
GU03434313
Not Available
1
Front mudguard blank
GU03434300
£149,99 Unit Price incl. VAT
1
Front mudguard, black
GU03434360
£783,60 Unit Price incl. VAT
1
Front mudguard, white
GU03434311
Not Available
2
Front RH side profile ch.plate
GU03435200
£42,23 Unit Price incl. VAT
3
Front LH side profile ch.plate
GU03435400
£42,32 Unit Price incl. VAT
4
Plate
GU39922200
£1,02 Unit Price incl. VAT
5
Rear RH side profile ch.plate
GU03435300
£29,56 Unit Price incl. VAT
6
Rear LH side profile ch.plate
GU03435500
Not Available
7
Rubber spacer
GU03436400
£15,10 Unit Price incl. VAT
8
Cable-guide
GU03436500
£37,40 Unit Price incl. VAT
9
Plate
GU03436300
£2,58 Unit Price incl. VAT
10
Hex screw
GU98082225
£1,20 Unit Price incl. VAT
11
Cap nut
GU92787205
£1,68 Unit Price incl. VAT
12
Stabilization plate
GU03436600
Not Available
13
Hex socket screw
GU98370850
£1,48 Unit Price incl. VAT
14
Washer 8,4x14,57x1,6
GU95005308
£1,26 Unit Price incl. VAT
15
Hex socket screw M6x22
GU98370322
Not Available
16
Rubber 10X20X10
GU91551010
£8,06 Unit Price incl. VAT
17
Spacer D.6,5
GU30576100
£12,89 Unit Price incl. VAT

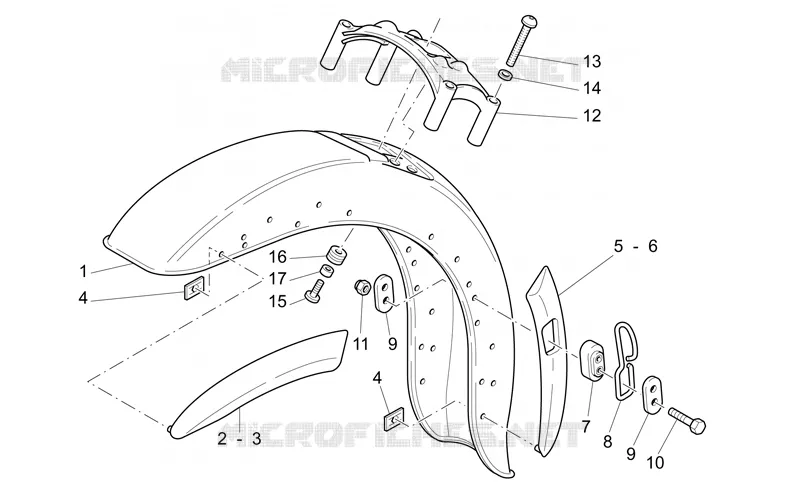

Find the detailed Front mudguard MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
