1
Engine displacement
1100
2
Model
CALIFORNIA
3
Year
2002
4
Trim
California EV Touring PI
5
Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
Front fork
by
Rear wheel
Front wheel
1
2
3
3
4
5
6
7
7
8
8
9
10
11
12
13
14
1
Front wheel 2,50x18"
GU03610310
£637,36 Unit Price incl. VAT
2
Tubeless tyre valve
GU03617710
£27,68 Unit Price incl. VAT
3
Bearing 20x52x15
GU92201821
£35,15 Unit Price incl. VAT
4
Spacer
GU03615210
£62,62 Unit Price incl. VAT
5
Spoke
GU03611610
£3,01 Unit Price incl. VAT
6
Nipples
GU03611711
£4,92 Unit Price incl. VAT
7
Front brake disc
GU37613305
Not Available
8
Screw w/ flange M8x20
GU03611445
Not Available
9
Front wheel spindle
GU03614101
Not Available
10
LH spacer
GU03616300
£10,82 Unit Price incl. VAT
11
Cover 15 mm
GU93180111
£2,63 Unit Price incl. VAT
12
Dowel
GU98460404
£0,95 Unit Price incl. VAT
13
Counterweight
GU14616150
£18,94 Unit Price incl. VAT
14
Front wheel 2,50x18"
GU03610810
£299,96 Unit Price incl. VAT

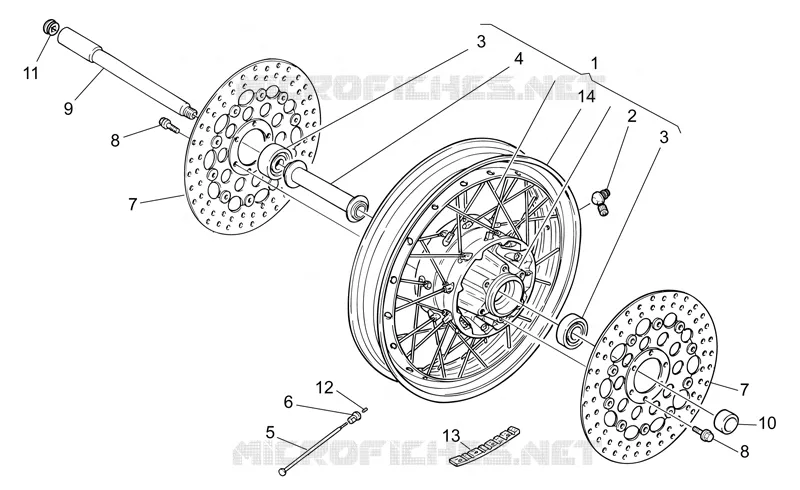

Find the detailed Front wheel MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
