1
Engine displacement
1100
2
Model
CALIFORNIA
3
Year
2002
4
Trim
California EV Touring PI
5
Parts Catalog
RH Front brake system
6
Parts Diagram
Parts Catalog
Rear wheel
by
LH Front brake system
RH Front brake system
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
Front master cilinder
GU03660145
Not Available
2
Brake lever
GU03605645
£58,31 Unit Price incl. VAT
3
U-bolt
GU03664045
£37,04 Unit Price incl. VAT
4
Cap
GU39663801
£10,33 Unit Price incl. VAT
5
Lever pin
GU03604845
£20,14 Unit Price incl. VAT
6
Cable-guide
GU03659700
£26,69 Unit Price incl. VAT
7
Stop switch
GU03749845
Not Available
8
Hex socket screw M4x12
GU98370412
£1,26 Unit Price incl. VAT
9
Washer
GU95021204
£1,86 Unit Price incl. VAT
10
Pump cover
GU03661145
£67,30 Unit Price incl. VAT
11
Oil pipe screw *
GU95990028
£14,99 Unit Price incl. VAT
12
Gasket
GU25656100
£1,57 Unit Price incl. VAT
13
Flexible pipe
GU03657101
£19,61 Unit Price incl. VAT
14
Hose clamp
GU03658430
£13,44 Unit Price incl. VAT
15
Ring
GU03658201
£3,11 Unit Price incl. VAT
16
RH Front brake caliper, gold
GU01652330
£521,81 Unit Price incl. VAT
17
screw M10x30
GU98683530
Not Available
18
Washer 10,5x16x1
GU19149800
£0,38 Unit Price incl. VAT
19
Clearance washer 0,5 mm
GU95100332
£1,42 Unit Price incl. VAT
19
Clearance washer 0,8 mm
GU95100333
£0,52 Unit Price incl. VAT
20
Pads pair
GU01654630
£52,94 Unit Price incl. VAT
21
Bleeder+cap
GU01659230
£22,54 Unit Price incl. VAT
22
Pins+Caliper springs
GU01659130
£44,40 Unit Price incl. VAT
23
Spring
GU01659131
£46,15 Unit Price incl. VAT
24
Washer 6,4x13x1,5
GU95005306
£1,27 Unit Price incl. VAT
25
Hex socket screw
GU98370619
£1,58 Unit Price incl. VAT

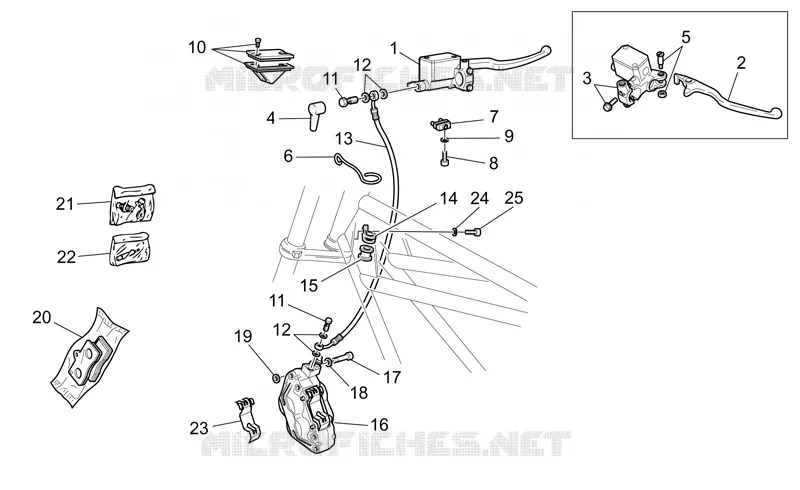

Find the detailed RH Front brake system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
