Parts Catalog
Driven shaft
6
Parts Diagram
Parts Catalog
Primary gear shaft
by
Generator - Regulator
Driven shaft
1
2
3
4
5
6
7
8
9
10
11
12
12
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
26
27
28
29
30
30
30
31
32
33
1
Driven shaft
GU14213612
£590,24 Unit Price incl. VAT
2
Nut
GU14217410
£23,46 Unit Price incl. VAT
3
Shim 17,25x27x0,5
GU43083810
£1,58 Unit Price incl. VAT
4
Clearance washer 17,1x30
GU14215400
£3,13 Unit Price incl. VAT
5
Gear 4a AS 5 inn.Z=20
GU03215100
£237,17 Unit Price incl. VAT
6
Ring 4a
GU92259017
£21,49 Unit Price incl. VAT
7
Roller cage 4a A.S.
GU92251022
£21,86 Unit Price incl. VAT
8
Hose 3a-4a AS 5 inn.
GU30231025
£172,98 Unit Price incl. VAT
9
Hose
GU14232512
£38,08 Unit Price incl. VAT
10
Washer 25x40x3
GU14218011
£7,98 Unit Price incl. VAT
11
Gear 3a AS 5 inn.Z=22
GU03214800
£47,30 Unit Price incl. VAT
12
Bush 1a-2a-3a AS
GU14213001
£56,30 Unit Price incl. VAT
13
Gear 2a AS 5 inn.Z=25
GU03214500
£46,15 Unit Price incl. VAT
14
Nut
GU14219310
Not Available
15
Ball
GU92295702
£0,67 Unit Price incl. VAT
16
Washer 22,1x32x2
GU14217300
£2,96 Unit Price incl. VAT
17
Gear 5a AS Z=21
GU14215213
£175,62 Unit Price incl. VAT
18
Gear 1a AS 5 inn.Z=28
GU30214225
£73,84 Unit Price incl. VAT
19
Sliding sleeve 1a-2aAS5 inn
GU30230725
£35,76 Unit Price incl. VAT
20
Shift cam
GU03234400
£70,38 Unit Price incl. VAT
21
Washer 8,2x28x1
GU14235500
£1,46 Unit Price incl. VAT
22
Shim 1,2 mm
GU55235003
£0,71 Unit Price incl. VAT
22
Shim 1 mm
GU55235002
£1,13 Unit Price incl. VAT
22
Shim 0,6 mm
GU55235000
£1,14 Unit Price incl. VAT
22
Shim 0,8 mm
GU55235001
£0,95 Unit Price incl. VAT
23
Rod
GU14234300
£26,35 Unit Price incl. VAT
24
Pin
GU14234600
£12,38 Unit Price incl. VAT
25
Rod
GU14232400
£62,58 Unit Price incl. VAT
26
Fork 1a-2a-3a-4a
GU14230501
£249,72 Unit Price incl. VAT
27
Fork
GU14231201
£221,92 Unit Price incl. VAT
28
O-ring 21,95x1,78
GU90706219
£1,76 Unit Price incl. VAT
29
Washer
GU28217350
£52,70 Unit Price incl. VAT
30
Roller cage 30x35x13
GU92251030
£21,80 Unit Price incl. VAT
31
O-ring 20,24X2,62
GU90706203
£1,39 Unit Price incl. VAT
32
Preselection complete
GU28236260
£91,67 Unit Price incl. VAT
33
Spring
GU28238261
Not Available

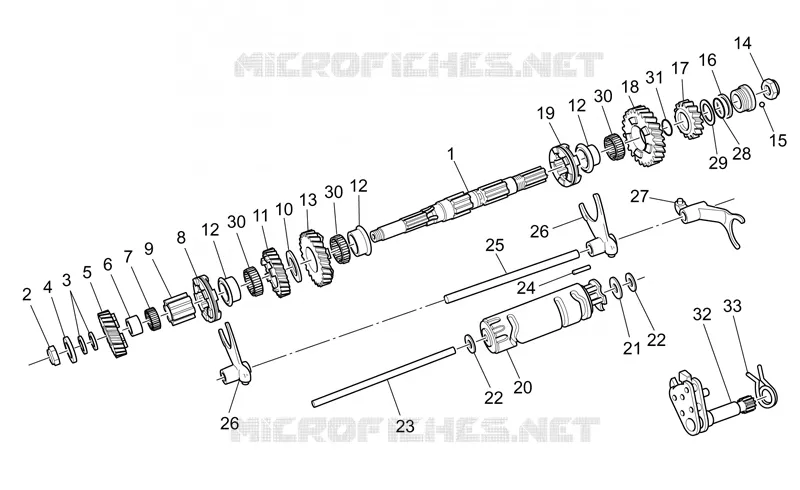

Find the detailed Driven shaft MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
