Engine displacement
1100
2
Model
CALIFORNIA
3
Year
2002
4
Trim
California EV Touring PI
5
Parts Catalog
Primary gear shaft
6
Parts Diagram
Parts Catalog
Transmission cage
by
Driven shaft
Primary gear shaft
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Ring nut
GU93601022
£48,91 Unit Price incl. VAT
2
Washer 22x20x3,9
GU95028022
£2,04 Unit Price incl. VAT
3
Clutch gear
GU30081810
£136,22 Unit Price incl. VAT
4
O-ring 23,52x1,78
GU90706235
£1,60 Unit Price incl. VAT
5
Clutch shaft
GU14210702
£79,61 Unit Price incl. VAT
6
O-ring 20,24X2,62
GU90706203
£1,39 Unit Price incl. VAT
7
Oil-spreading washer 25,1x36x0,5
GU14218401
£12,85 Unit Price incl. VAT
8
Idle gear Z=17
GU03211160
£507,64 Unit Price incl. VAT
9
Hose
GU03211260
£28,85 Unit Price incl. VAT
10
Belleville spring
GU04211500
£15,19 Unit Price incl. VAT
11
Disc
GU03211660
£36,84 Unit Price incl. VAT
12
Half ring
GU12211700
£11,64 Unit Price incl. VAT
13
Spacer
GU14219401
£21,67 Unit Price incl. VAT
14
Primary gear shaft
GU14210513
Not Available
15
Thrust washer sp.2
GU18211050
£12,89 Unit Price incl. VAT
15
Thrust washer sp.2,2
GU18211052
£10,39 Unit Price incl. VAT
15
Thrust washer sp.2,1
GU18211051
£12,89 Unit Price incl. VAT
15
Thrust washer sp.2,4
GU18211054
£12,89 Unit Price incl. VAT
16
Roller bearing
GU92258525
Not Available
17
Gear 5a AP 5 inn.Z=28
GU03212000
£204,86 Unit Price incl. VAT
18
Roller
GU92296750
£1,70 Unit Price incl. VAT
19
Spring
GU94321051
£1,91 Unit Price incl. VAT
20
Roller cage 30x35x13
GU92251030
£21,80 Unit Price incl. VAT
21
Bush 5a AP
GU14212210
£86,42 Unit Price incl. VAT
22
Sliding sleeve
GU30231525
£31,15 Unit Price incl. VAT

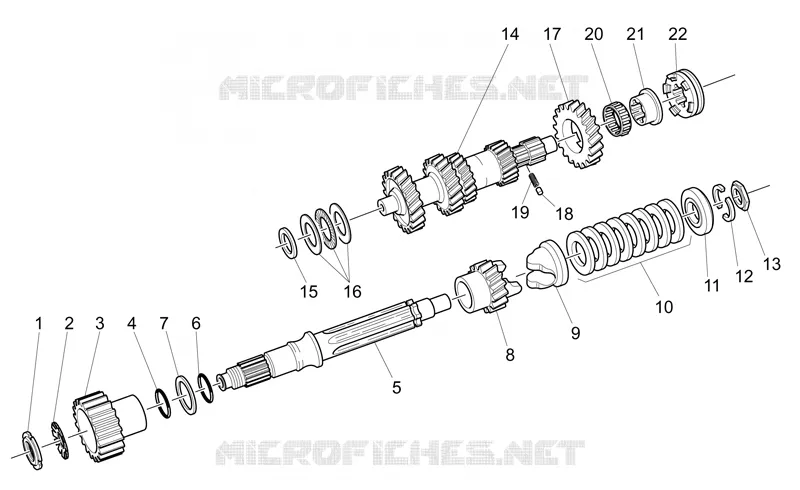

Find the detailed Primary gear shaft MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
