1
Engine displacement
650
2
Model
V65
3
Year
1990
4
Trim
V 65 Polizia/PA NuovoTipo
5
Parts Catalog
Swing arm-to frame PG17000
6
Parts Diagram
Parts Catalog
Swing arm-from frame PG17001
by
CEV controls el.system

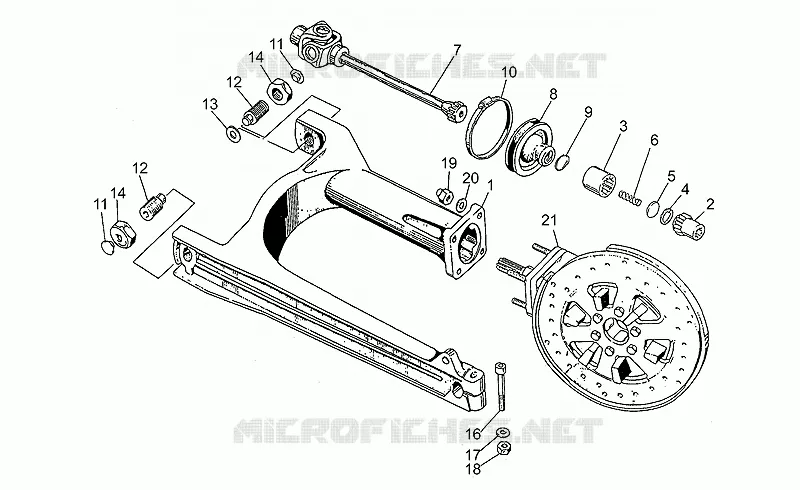

Swing arm-to frame PG17000
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
14
14
16
17
18
19
20
21
1
Swing arm
GU19540261
Not Available
2
Hose
GU19327701
Not Available
3
Hose
GU19328801
£92,20 Unit Price incl. VAT
4
Circlip
GU90272023
£0,89 Unit Price incl. VAT
5
Disc
GU19327601
£3,61 Unit Price incl. VAT
6
Spring
GU94321099
£7,19 Unit Price incl. VAT
7
Coupling
GU19328061
£649,02 Unit Price incl. VAT
8
Protection collar
GU19548001
Not Available
9
Spring
GU19548101
Not Available
10
Hose clamp
GU93305074
Not Available
11
Cover
GU93180105
£1,78 Unit Price incl. VAT
12
Pin
GU19547000
£65,38 Unit Price incl. VAT
13
Spacer
GU35214300
£4,54 Unit Price incl. VAT
14
Nut
GU14547800
Not Available
16
screw
GU98052550
£1,24 Unit Price incl. VAT
17
Washer 10,2x18x2
GU95004210
£0,96 Unit Price incl. VAT
18
Nut
GU92602210
Not Available
19
Nut
GU92781081
£10,21 Unit Price incl. VAT
20
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
21
Transmission box assy., grey
GU20350220
Not Available

Find the detailed Swing arm-to frame PG17000 MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
