1
Engine displacement
650
2
Model
V65
3
Year
1990
4
Trim
V 65 Polizia/PA NuovoTipo
5
Parts Catalog
Front fork 38mm
6
Parts Diagram
Parts Catalog
Front fork 35mm
by
Front fork-from frame PG17001
Front fork 38mm
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
30
31
32
33
34
35
36
37
38
39
40
41
1
Stem base
GU23494070
Not Available
2
Stem plug washer
GU18513560
£2,12 Unit Price incl. VAT
3
Hex screw
GU98072555
Not Available
4
Washer
GU95007210
£1,52 Unit Price incl. VAT
5
Spacer
GU91181016
Not Available
6
Plug
GU18513460
£15,96 Unit Price incl. VAT
7
Fork upper plate
GU23493140
Not Available
8
screw
GU98610540
£4,64 Unit Price incl. VAT
9
screw
GU98612535
Not Available
10
Steering lock bush
GU18516660
Not Available
11
RH sleeve
GU23522591
Not Available
12
LH sleeve
GU23522691
Not Available
13
Oil seal
GU90403857
Not Available
14
Bush
GU19527679
Not Available
15
screw
GU98622320
£0,96 Unit Price incl. VAT
16
Washer 6,25x10x1,5
GU95100116
£1,60 Unit Price incl. VAT
17
Sleeve
GU28525400
Not Available
18
Dust cover
GU28524500
£26,87 Unit Price incl. VAT
19
Shock absorber
GU19526479
£333,89 Unit Price incl. VAT
20
Spring
GU28526600
Not Available
21
End stop
GU19527579
Not Available
22
Cup
GU19527779
Not Available
23
screw
GU98820540
£10,08 Unit Price incl. VAT
24
screw
GU98622520
Not Available
25
Bored screw
GU28556450
£25,48 Unit Price incl. VAT
26
Air valve
GU28556250
£41,24 Unit Price incl. VAT
27
Circlip
GU90271014
£0,89 Unit Price incl. VAT
28
Copper washer
GU28556350
£0,65 Unit Price incl. VAT
29
Front shock absorber tube
GU19529660
Not Available
30
Nut
GU92781100
Not Available
31
Anti-rubbing pipe
GU27526320
Not Available
32
Flat washer
GU27499120
£9,58 Unit Price incl. VAT
33
O-ring 9x2
GU90706094
£1,87 Unit Price incl. VAT
34
Nut
GU92602308
£0,96 Unit Price incl. VAT
35
Stud bolt
GU96508021
£24,73 Unit Price incl. VAT
36
Cup
GU28526540
Not Available
37
Handlebar collar
GU17500200
Not Available
38
screw
GU98052498
Not Available
39
screw
GU98620435
Not Available
40
Washer
GU95000208
£5,23 Unit Price incl. VAT
41
Nut
GU92630108
£1,02 Unit Price incl. VAT

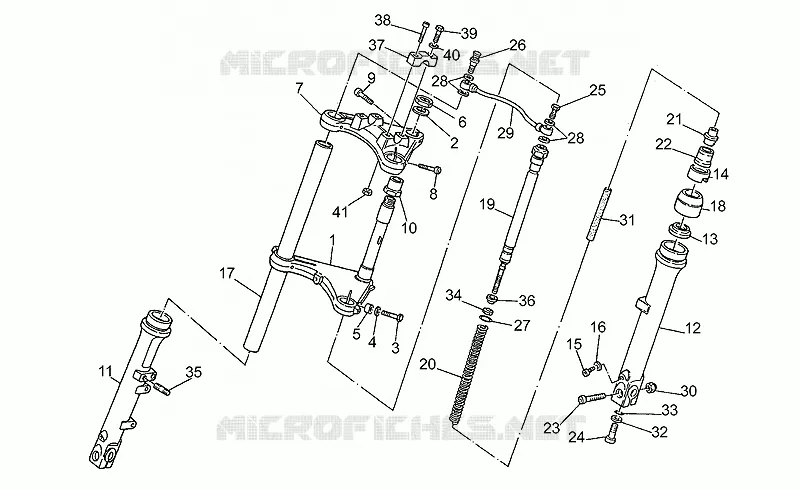

Find the detailed Front fork 38mm MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
