1
Engine displacement
650
2
Model
V65
3
Year
1990
4
Trim
V 65 Polizia/PA NuovoTipo
5
Parts Catalog
Front wh. from frame PG17001
6
Parts Diagram
Parts Catalog
Rear master cylinder
by
Front wh. to frame PG17000
Front wh. from frame PG17001
1
2
2
3
4
4
5
5
6
7
8
9
10
11
12
1
Front wheel, grey
GU14610370
Not Available
2
Bearing
GU92204221
£65,62 Unit Price incl. VAT
3
Bearing internal spacer
GU17615360
£78,68 Unit Price incl. VAT
4
Brake disc
GU28613300
Not Available
5
screw
GU98230825
£7,98 Unit Price incl. VAT
6
Spacer
GU31616315
Not Available
7
Front wheel spindle
GU28614100
£214,31 Unit Price incl. VAT
8
Washer 17X27X2
GU95004217
£3,86 Unit Price incl. VAT
9
Nut M16X1,5
GU92602516
Not Available
10
Counterweight
GU14616150
£18,94 Unit Price incl. VAT
11
Odometer gear
GU31762561
Not Available
12
Air valve
GU28617760
£13,82 Unit Price incl. VAT

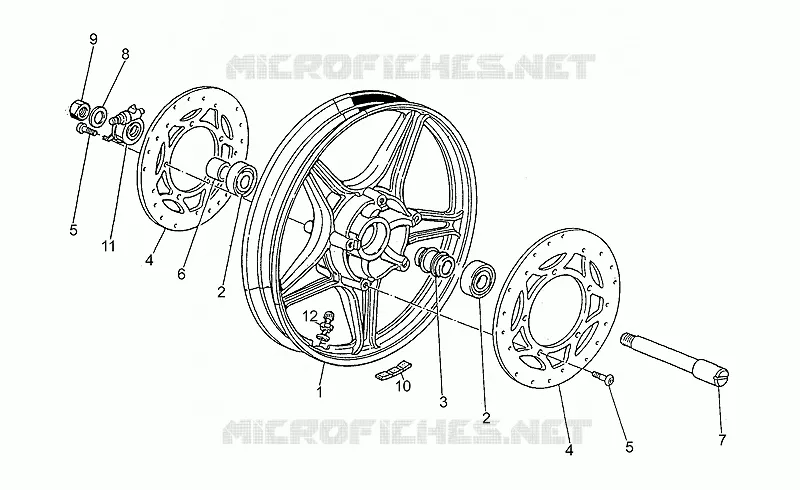

Find the detailed Front wh. from frame PG17001 MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
