1
Engine displacement
650
2
Model
V65
3
Year
1990
4
Trim
V 65 Polizia/PA NuovoTipo
5
Parts Catalog
Front/rear shock absorber
6
Parts Diagram
Parts Catalog
Sonora two-tone sirens
by
Frame
Front/rear shock absorber
1
1
2
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
15
16
16
17
18
19
20
21
1
Front fork mm 38
GU23490291
Not Available
1
Front fork, grey
GU19490225
Not Available
1
Front fork mm 35
GU23490390
Not Available
2
Tap.roller bearing
GU92249225
£80,94 Unit Price incl. VAT
3
Cup
GU14494600
Not Available
4
Clearance washer
GU14516700
£22,25 Unit Price incl. VAT
5
Dust cover
GU14517000
£7,92 Unit Price incl. VAT
6
Spacer
GU91181407
£15,18 Unit Price incl. VAT
7
Rear shock absorber KOENI
GU23550290
Not Available
7
Shock absorber
GU28550263
Not Available
8
Pin
GU19555260
Not Available
9
Ext. washer
GU23557790
Not Available
10
screw
GU98822416
£1,51 Unit Price incl. VAT
11
Steering shock absorber
GU17530260
Not Available
12
Washer 5,3x10x0,5
GU95100121
Not Available
13
Hex screw
GU98054320
£0,96 Unit Price incl. VAT
14
screw
GU98052325
£0,56 Unit Price incl. VAT
15
Washer
GU95000206
£1,02 Unit Price incl. VAT
16
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
17
Plate
GU23531890
Not Available
18
Hex screw
GU98072555
Not Available
19
Washer
GU95007210
£1,52 Unit Price incl. VAT
20
Hose clamp
GU27651315
Not Available
21
Ring
GU17658260
£1,58 Unit Price incl. VAT

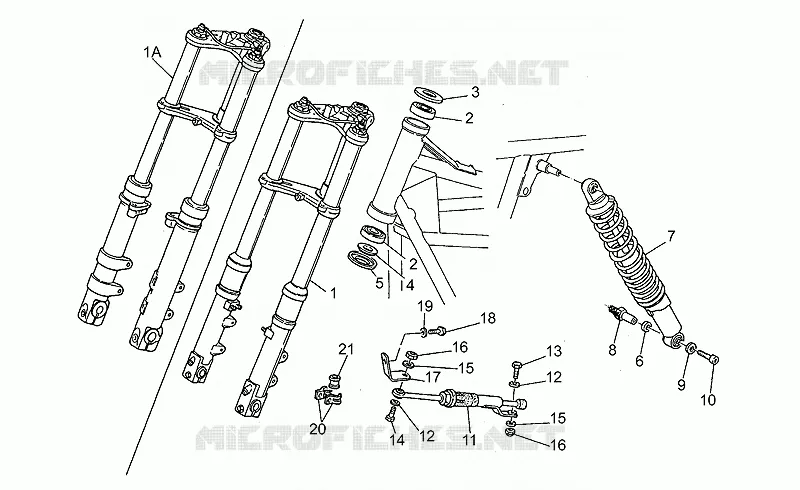

Find the detailed Front/rear shock absorber MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
