1
Engine displacement
650
2
Model
V65
3
Year
1990
4
Trim
V 65 Polizia/PA NuovoTipo
5
Parts Catalog
Front fork 35mm
6
Parts Diagram
Parts Catalog
Air filter
by
Front fork 38mm
Front fork 35mm
1
2
3
4
5
6
7
8
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
35
36
37
41
42
43
43
44
45
47
1
Stem base
GU23494090
Not Available
2
Nylon washer
GU18526560
Not Available
3
Hex socket screw M10x60
GU98620560
£3,65 Unit Price incl. VAT
4
Washer 10,2x18x2
GU95004210
£0,96 Unit Price incl. VAT
5
Spacer
GU91181110
Not Available
6
Stem plug washer
GU18513560
£2,12 Unit Price incl. VAT
7
Fork upper plate
GU17493160
Not Available
8
screw
GU98620540
£1,94 Unit Price incl. VAT
9
Steering lock bush
GU18516660
Not Available
10
Plug
GU18513460
£15,96 Unit Price incl. VAT
11
RH sleeve
GU625225201
Not Available
12
LH sleeve
GU625226201
Not Available
13
Oil seal
GU90403449
£11,29 Unit Price incl. VAT
14
Stud bolt
GU96508021
£24,73 Unit Price incl. VAT
15
screw
GU98622312
Not Available
16
Washer 6,25x10x1,5
GU95100116
£1,60 Unit Price incl. VAT
17
Sleeve
GU63525400
Not Available
18
Dust cover
GU14524500
£17,89 Unit Price incl. VAT
19
Fork shock absorber
GU29526400
Not Available
20
Nut
GU92630108
£1,02 Unit Price incl. VAT
21
pipe
GU14527800
Not Available
22
Spring
GU18526960
£106,94 Unit Price incl. VAT
23
Spacer
GU18527960
Not Available
24
Return spring
GU18526660
Not Available
25
Fork pump ring
GU14527900
Not Available
26
Circlip
GU90271014
£0,89 Unit Price incl. VAT
27
Gasket ring
GU90706238
£0,77 Unit Price incl. VAT
28
Cup
GU19527460
Not Available
29
Dowel
GU95510308
£0,42 Unit Price incl. VAT
30
Nut
GU92781100
Not Available
31
Nut
GU92602308
£0,96 Unit Price incl. VAT
32
screw
GU98620435
Not Available
35
Handlebar collar
GU17500200
Not Available
36
Washer
GU95000208
£5,23 Unit Price incl. VAT
37
screw
GU98052498
Not Available
41
Gasket
GU10528900
£4,45 Unit Price incl. VAT
42
Front shock absorber tube
GU19529660
Not Available
43
Copper washer
GU28556350
£0,65 Unit Price incl. VAT
44
Air valve
GU28556250
£41,24 Unit Price incl. VAT
45
Bored screw
GU28556450
£25,48 Unit Price incl. VAT
47
Hex socket screw M10x60
GU98620560
£3,65 Unit Price incl. VAT

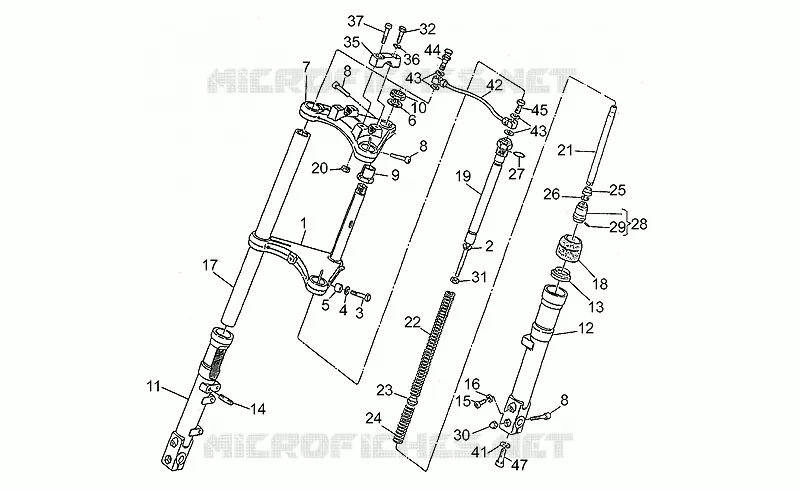

Find the detailed Front fork 35mm MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
