1
Engine displacement
650
2
Model
V65
3
Year
1990
4
Trim
V 65 Polizia/PA NuovoTipo
5
Parts Catalog
Front master cilinder
6
Parts Diagram
Parts Catalog
Brake caliper
by
Rear master cylinder
Front master cilinder
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
29
30
1
Front master cilinder
GU29660250
Not Available
2
screw
GU98812216
£2,35 Unit Price incl. VAT
2
Bracket
GU27664075
Not Available
3
Front brake hose
GU28657140
£95,93 Unit Price incl. VAT
3
Flexible pipe
GU27657135
Not Available
4
Oil pipe screw *
GU95990028
£14,99 Unit Price incl. VAT
5
Hose clamp
GU17658460
£10,24 Unit Price incl. VAT
6
Ring
GU17658260
£1,58 Unit Price incl. VAT
7
Brake caliper cover BREMBO
GU39654700
Not Available
7
Brake caliper cover GRIMECA
GU31654765
Not Available
8
LH front brake caliper Grimeca
GU31652365
Not Available
9
screw
GU98622422
Not Available
10
Spring washer 8x15x0,3
GU61270300
£1,70 Unit Price incl. VAT
11
Cap
GU39663801
£10,33 Unit Price incl. VAT
12
Washer 8,5X18X0,5
GU95100250
£18,16 Unit Price incl. VAT
12
Washer 8,5X18X0,8
GU95100251
Not Available
13
Pump cover
GU27661115
Not Available
13
Cover
GU23661110
Not Available
14
Brake mast.cyl rev. kit
GU27659315
Not Available
14
Brake mast.cyl rev. kit
GU23659310
Not Available
15
Pads pair BREMBO
GU27654610
£16,44 Unit Price incl. VAT
15
Pads pair GRIMECA
GU31654665
Not Available
16
Bleeder+cap GRIMECA
GU31659265
£12,54 Unit Price incl. VAT
16
Bleeder+cap BREMBO D.6
GU65659200
£17,86 Unit Price incl. VAT
17
Pins+spring BREMBO
GU39659100
£13,42 Unit Price incl. VAT
17
Pins+spring GRIMECA
GU31659165
Not Available
18
Brake caliper rev. kit GRIMECA
GU66659031
Not Available
18
Brake caliper rev. kit BREMBO
GU39659000
£34,49 Unit Price incl. VAT
19
Pin
GU27604815
£19,98 Unit Price incl. VAT
20
Cap
GU27663615
Not Available
21
Stop switch
GU27749815
Not Available
22
screw
GU98200214
Not Available
23
Brake lever
GU27605615
Not Available
24
Nut
GU92601002
£1,02 Unit Price incl. VAT
25
Ball
GU92295708
£0,70 Unit Price incl. VAT
26
Cover
GU93180080
£1,98 Unit Price incl. VAT
27
Gasket
GU25656100
£1,57 Unit Price incl. VAT
28
Front master cilinder
GU27660115
£275,94 Unit Price incl. VAT
29
Hex socket screw
GU98622425
£6,13 Unit Price incl. VAT
30
Cable-guide
GU23655770
Not Available

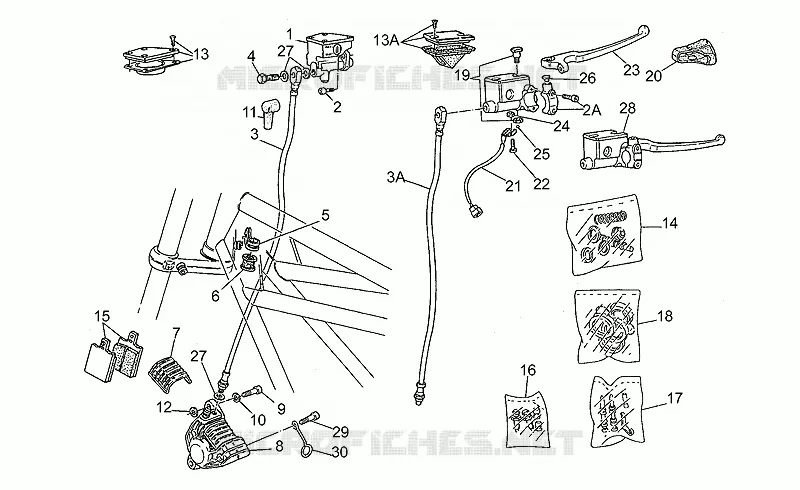

Find the detailed Front master cilinder MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
