1
Engine displacement
650
2
Model
V65
3
Year
1990
4
Trim
V 65 Polizia/PA NuovoTipo
5
Parts Catalog
Body
6
Parts Diagram
Parts Catalog
Fairing
by
Bevel gear
Body
1
2
3
4
5
6
7
8
9
10
11
12
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
45
1
Fuel tank,white w/black decals
GU23100290003
Not Available
1
Fuel tank
GU23100290
Not Available
1
Fuel tank,white w/blue dec.
GU23100290004
Not Available
1
Fuel tank blank
GU191002051
£685,01 Unit Price incl. VAT
2
Tank cap
GU28103945
Not Available
3
Tank cover, white
GU23104090
Not Available
3
Tank cover, blank
GU141040551
£76,14 Unit Price incl. VAT
4
Locks
GU14736856
Not Available
5
Tab
GU18105001
Not Available
6
Hose clamp
GU19104950
£1,76 Unit Price incl. VAT
7
Rubber spacer
GU19104336
£10,08 Unit Price incl. VAT
8
screw
GU98054210
£0,43 Unit Price incl. VAT
9
Spring washer 5,3X10X0,5
GU95129100
£0,58 Unit Price incl. VAT
10
Decal "Moto Guzzi"
GU14917300
Not Available
10
"Moto Guzzi" dataplate
GU28917300
Not Available
11
Clip
GU14105100
Not Available
12
RH fuel cock
GU65105400
£15,14 Unit Price incl. VAT
12
RH fuel cock
GU23105470
Not Available
13
LH fuel cock
GU23105370
£35,96 Unit Price incl. VAT
13
LH fuel cock
GU65105401
£15,14 Unit Price incl. VAT
14
Tie rod
GU19102750
Not Available
15
RH side panel, white
GU23476290
Not Available
15
RH body panel blank
GU194762501
£100,62 Unit Price incl. VAT
15
RH side panel, wh.w/blue decal
GU23476290004
Not Available
15
RH side panel,wh.w/ black dec.
GU23476290003
Not Available
16
LH body panel blank
GU194763501
Not Available
16
LH side panel, white
GU23476390
Not Available
16
LH side panel,wh.w/ black dec.
GU23476390003
Not Available
16
LH side panel, wh.w/blue decal
GU23476390004
Not Available
17
Net panel (r)
GU19478150
£46,88 Unit Price incl. VAT
18
Net panel (l)
GU19478250
£46,88 Unit Price incl. VAT
19
Rubber spacer
GU19478550
£10,03 Unit Price incl. VAT
20
Rubber spacer
GU19478750
£6,89 Unit Price incl. VAT
21
Name plate "V65"
GU19922060
Not Available
22
Plate
GU39922200
£1,02 Unit Price incl. VAT
23
Saddle
GU23460590
Not Available
24
Tab
GU28460945
Not Available
25
Rear saddle hinge
GU28461345
Not Available
26
Front saddle hinge
GU28461300
Not Available
27
Hex screw
GU98054316
£0,49 Unit Price incl. VAT
28
Washer 6,5X17X1.5
GU95100139
£1,20 Unit Price incl. VAT
29
Notched washer
GU95021106
Not Available
30
Rear fairing,wh.w/ Blue Dec.
GU23472690004
Not Available
30
Rear fairing, wh.w/ Black dec.
GU23472690003
Not Available
30
Rear fairing, white s.za decalco
GU23472690
Not Available
30
Rear fairing, blank
GU234726901
Not Available
31
"MotoGuzzi" dec.
GU28923400
Not Available
32
RH gasket
GU28439845
£2,03 Unit Price incl. VAT
33
LH gasket
GU28439846
£1,82 Unit Price incl. VAT
34
Rubber spacer
GU28479945
£7,80 Unit Price incl. VAT
35
Fixing pin
GU28472545
Not Available
36
screw
GU98280610
Not Available
37
Washer
GU95000206
£1,02 Unit Price incl. VAT
38
Pillion grab bar
GU28464401
Not Available
39
Washer
GU28478645
£0,92 Unit Price incl. VAT
40
Spacer
GU28471845
Not Available
41
Pin
GU28471945
Not Available
42
Pin
GU23466890
£18,12 Unit Price incl. VAT
43
Washer 10,5X18X0,8
GU95129180
£1,02 Unit Price incl. VAT
45
Decal set, blue
GU23923390004
£303,18 Unit Price incl. VAT
45
Decal set, black
GU23923390003
£208,86 Unit Price incl. VAT

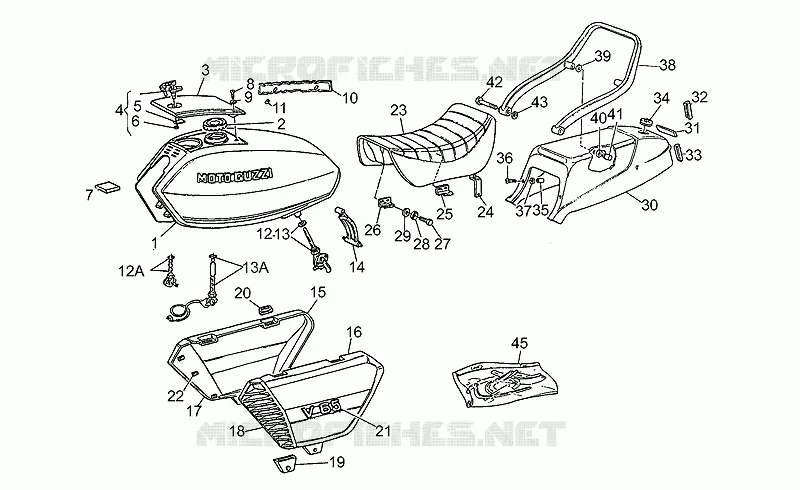

Find the detailed Body MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
