Engine displacement
650
2
Model
V65
3
Year
1990
4
Trim
V 65 Florida
5
Parts Catalog
Electrical system
6
Parts Diagram
Parts Catalog
Swing arm-rear wh., alloy
by
RH Front brake system
Electrical system
1
2
3
4
5
6
6
7
7
8
8
9
9
9
10
11
12
13
14
14
15
16
16
16
16
17
18
19
20
21
22
1
Electrical system
GU23747171
Not Available
1
Electrical system
GU23747170
Not Available
1
Electrical system
GU31747161
Not Available
2
Dashboard cable
GU23747210
Not Available
2
Dashboard cable
GU23747211
£127,50 Unit Price incl. VAT
3
ECU elettronica
GU23721493
Not Available
4
Flexible support
GU27723835
£3,49 Unit Price incl. VAT
5
H.T. wiring
GU31722140
£65,52 Unit Price incl. VAT
6
Flasher unit
GU17750520
Not Available
6
Flasher unit
GU28750561
Not Available
7
screw
GU98054212
£0,47 Unit Price incl. VAT
8
Washer
GU95000205
£0,96 Unit Price incl. VAT
9
Nut
GU92602205
£0,96 Unit Price incl. VAT
10
Rubber fuse box
GU23743010
Not Available
11
Fuse 15A
GU28742560
Not Available
12
screw
GU98620212
Not Available
13
Alternator-regulator wiring
GU23725870
Not Available
13
Alternator-regulator wiring
GU19725820
Not Available
13
Alternator-regulator wiring
GU27725820
Not Available
14
Starting relay
GU30732510
£19,01 Unit Price incl. VAT
14
Starter relay
GU19732500
£27,72 Unit Price incl. VAT
15
Hose clamp
GU61609630
Not Available
15
Hose clamp 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
16
Washer 5,25x14x1,5
GU95100059
£1,58 Unit Price incl. VAT
17
U-bolt
GU93301315
Not Available
18
Taillight wiring harn.
GU23747310
Not Available
19
Wire
GU23748210
Not Available
20
Wire
GU23748310
Not Available
21
Condenser
GU27710435
Not Available
22
Plate
GU31584630
Not Available

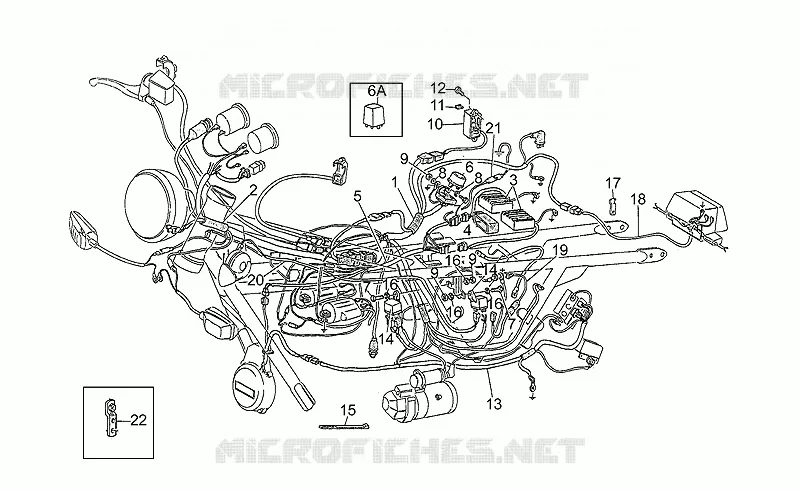

Find the detailed Electrical system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
