1
Engine displacement
650
2
Model
V65
3
Year
1990
4
Trim
V 65 Florida
5
Parts Catalog
Front/rear shock absorber
6
Parts Diagram
Parts Catalog
Rear wheel, alloy
by
Frame
Front/rear shock absorber
1
2
2
3
4
5
6
8
8
9
10
11
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
Front fork
GU23490371
Not Available
2
Tap.roller bearing
GU92249225
£80,94 Unit Price incl. VAT
3
Cup
GU14494600
Not Available
4
Clearance washer
GU14516700
£22,25 Unit Price incl. VAT
5
Dust cover
GU14517000
£7,92 Unit Price incl. VAT
6
Shock absorber-pair
GU23999270
Not Available
8
pipe
GU19556160
Not Available
9
Air valve
GU28556250
£41,24 Unit Price incl. VAT
10
Bored screw
GU28556450
£25,48 Unit Price incl. VAT
11
Copper washer
GU28556350
£0,65 Unit Price incl. VAT
12
Pin
GU23555281
£84,14 Unit Price incl. VAT
13
Spacer
GU91181407
£15,18 Unit Price incl. VAT
14
Washer
GU95100256
£2,10 Unit Price incl. VAT
15
Silent-block
GU14551655
Not Available
16
screw
GU98822440
Not Available
17
Washer
GU95000208
£5,23 Unit Price incl. VAT
18
Nut
GU92602410
£0,96 Unit Price incl. VAT
19
Washer 10,2x18x2
GU95004210
£0,96 Unit Price incl. VAT
20
Pin
GU23555280
Not Available
21
plate
GU19498060
Not Available
22
Special washer
GU61013800
£1,26 Unit Price incl. VAT
23
Hex screw
GU98054320
£0,96 Unit Price incl. VAT
24
Bracket
GU23751310
Not Available
25
Constructor dataplate
GU23769510
Not Available
26
screw
GU98326014
Not Available
27
Turn indicator support grill
GU23505810
Not Available
28
Pin
GU23922210
£1,33 Unit Price incl. VAT
29
screw
GU98822416
£1,51 Unit Price incl. VAT
30
Spacer
GU91180706
Not Available

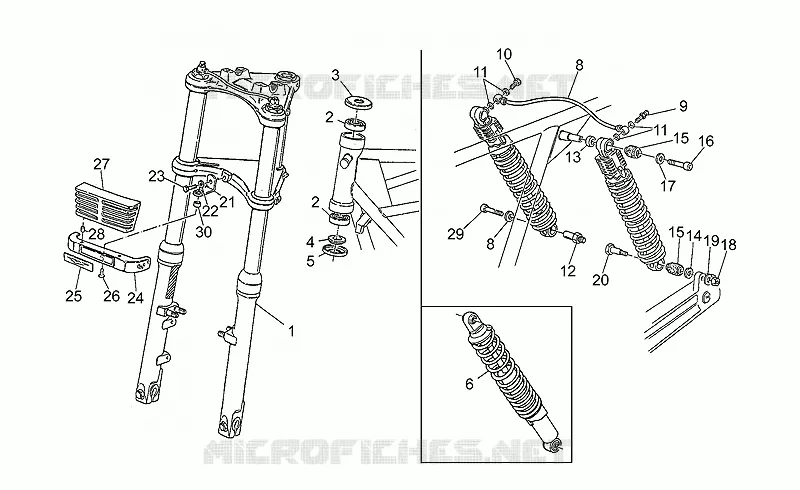

Find the detailed Front/rear shock absorber MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
