Parts Catalog
RH Front brake system
6
Parts Diagram
Parts Catalog
Electrical system
by
Front LH/rear brake system
RH Front brake system
1
1
2
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
Front master cilinder
GU29660250
Not Available
1
Front master cilinder
GU28660278
Not Available
2
screw
GU98812216
£2,35 Unit Price incl. VAT
2
Bracket
GU27664075
Not Available
3
Front brake line
GU23657110
Not Available
4
Oil pipe screw *
GU95990028
£14,99 Unit Price incl. VAT
5
Gasket
GU25656100
£1,57 Unit Price incl. VAT
6
Hose clamp
GU17658360
Not Available
7
Ring
GU17658260
£1,58 Unit Price incl. VAT
8
Brake caliper cover BREMBO
GU39654700
Not Available
8
Brake caliper cover GRIMECA
GU31654765
Not Available
9
Cap
GU39663801
£10,33 Unit Price incl. VAT
10
LH front brake caliper Grimeca
GU31652365
Not Available
11
Cap
GU27663615
Not Available
12
screw
GU98622422
Not Available
13
Washer 8,5X18X0,5
GU95100250
£18,16 Unit Price incl. VAT
13
Washer 8,5X18X0,8
GU95100251
Not Available
14
Spring washer 8x15x0,3
GU61270300
£1,70 Unit Price incl. VAT
15
Pump cover
GU27661115
Not Available
15
Cover
GU23661110
Not Available
16
Brake mast.cyl rev. kit
GU23659310
Not Available
16
Pump revision kit
GU28659378
£77,59 Unit Price incl. VAT
17
Pads pair
GU31654660
£30,17 Unit Price incl. VAT
17
Pads pair BREMBO
GU27654610
£16,44 Unit Price incl. VAT
17
Pads pair GRIMECA
GU31654665
Not Available
18
Brake caliper rev. kit GRIMECA
GU66659031
Not Available
18
Brake caliper rev. kit BREMBO
GU39659000
£34,49 Unit Price incl. VAT
19
Pins+spring BREMBO
GU39659100
£13,42 Unit Price incl. VAT
19
Pins+spring GRIMECA
GU31659165
Not Available
20
Bleeder+cap GRIMECA
GU31659265
£12,54 Unit Price incl. VAT
20
Bleeder+cap BREMBO D.10
GU31659260
£16,82 Unit Price incl. VAT
20
Bleeder+cap BREMBO D.6
GU65659200
£17,86 Unit Price incl. VAT
21
Hex socket screw
GU98622425
£6,13 Unit Price incl. VAT
22
Cable-guide
GU23655770
Not Available
23
screw
GU98280410
£0,92 Unit Price incl. VAT
24
Nut M4x0,7
GU92630104
£0,96 Unit Price incl. VAT
25
Pin
GU27604815
£19,98 Unit Price incl. VAT
26
Stop switch
GU27749815
Not Available
27
screw
GU98200214
Not Available
28
Front brake lever
GU28605678
Not Available
29
Nut
GU92608202
Not Available
30
Ball
GU92295708
£0,70 Unit Price incl. VAT
31
Cover
GU93180080
£1,98 Unit Price incl. VAT
32
Front master cilinder
GU28660178
Not Available

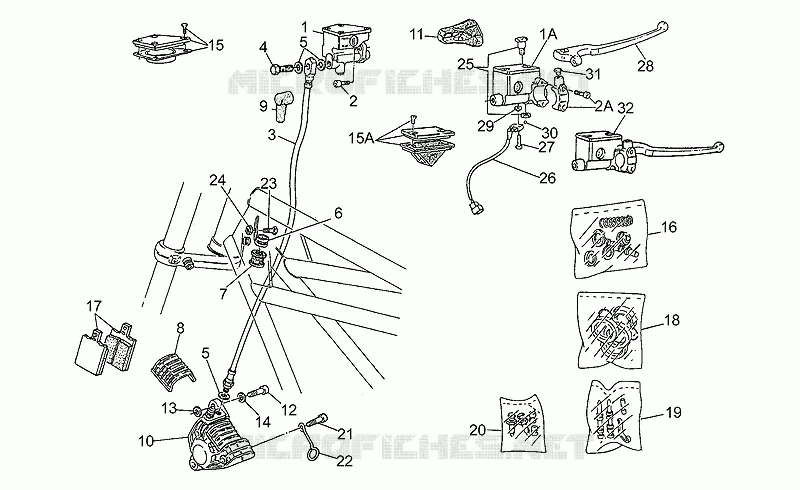

Find the detailed RH Front brake system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
