1
Engine displacement
650
2
Model
V65
3
Year
1990
4
Trim
V 65 Florida
5
Parts Catalog
Timing system
6
Parts Diagram
Parts Catalog
Crankcase
by
Clutch
Timing system
1
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
11
12
12
13
13
14
14
15
16
17
18
19
20
21
22
23
23
24
25
25
25
26
26
26
27
28
29
1
Intake valve
GU19036082
£98,60 Unit Price incl. VAT
2
Exhaust valve
GU19036183
£138,07 Unit Price incl. VAT
3
Spring
GU61037600
Not Available
4
Spring
GU61037500
Not Available
4
Spring
GU27037521
£11,40 Unit Price incl. VAT
5
Upper cup
GU31038015
£25,91 Unit Price incl. VAT
5
Upper cup
GU61038000
Not Available
6
Half-cone
GU61038100
£12,35 Unit Price incl. VAT
7
Rocker arm assy.
GU19030500
Not Available
8
screw
GU19034000
£27,72 Unit Price incl. VAT
9
Nut M6x1
GU92602406
£1,02 Unit Price incl. VAT
10
Rocker shaft
GU19032080
£134,66 Unit Price incl. VAT
11
Thrust washer
GU19032380
£3,53 Unit Price incl. VAT
12
Circlip
GU90271018
£0,85 Unit Price incl. VAT
13
Lower cup
GU31037015
£13,15 Unit Price incl. VAT
13
Lower cup
GU61037000
Not Available
14
Spacer
GU19032980
£2,75 Unit Price incl. VAT
15
Hose
GU19027500
Not Available
16
Camshaft
GU27053362
Not Available
16
Camshaft
GU27053463
Not Available
17
Timing system gear
GU19054521
Not Available
18
Bolt
GU61054900
£13,40 Unit Price incl. VAT
19
Camshaft chain
GU19058021
£205,50 Unit Price incl. VAT
20
Chain stretching drive
GU19058220
Not Available
21
screw
GU98822316
£1,04 Unit Price incl. VAT
22
Washer
GU95129115
£0,86 Unit Price incl. VAT
23
Sector
GU19055700
£30,97 Unit Price incl. VAT
24
Snap ring
GU90353029
£1,43 Unit Price incl. VAT
25
Tappet
GU19045861
£276,40 Unit Price incl. VAT
26
Rocker arm rod
GU19045060
Not Available
27
Roller
GU95512035
Not Available
28
Safety washer
GU23217800
£1,02 Unit Price incl. VAT
29
Cap
GU27045420
£8,12 Unit Price incl. VAT

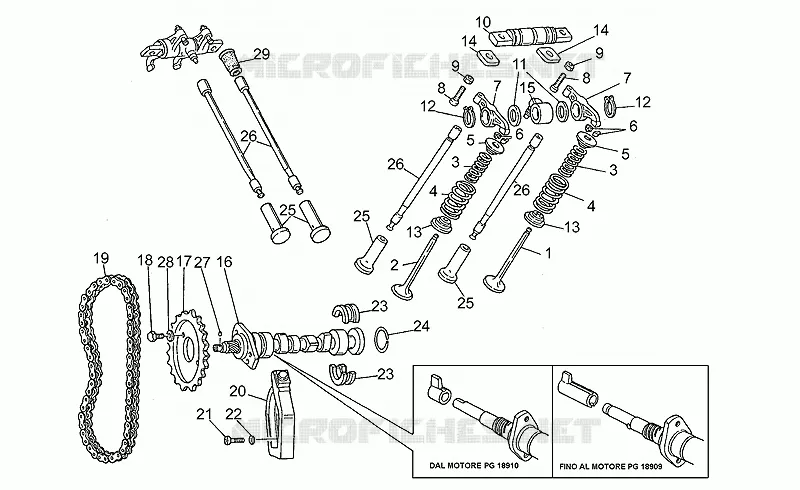

Find the detailed Timing system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
