1
Engine displacement
650
2
Model
V65
3
Year
1990
4
Trim
V 65 Florida
5
Parts Catalog
Dashboard
6
Parts Diagram
Parts Catalog
Bevel gear
by
Headlight-Horn
Dashboard
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
22
23
24
25
26
27
28
28
29
30
31
32
33
34
35
36
37
1
Dashboard box assy.
GU23760010
Not Available
2
Speedometer
GU23762470
£324,95 Unit Price incl. VAT
2
Speedometer
GU23761570
£491,02 Unit Price incl. VAT
3
Gear 60°
GU23768310
£129,01 Unit Price incl. VAT
4
Tachometer
GU23767270
£331,74 Unit Price incl. VAT
5
Rev counter container
GU23761910
Not Available
6
Speedometer container
GU23762010
£32,32 Unit Price incl. VAT
7
screw
GU98622214
£0,98 Unit Price incl. VAT
8
Spacer
GU23765110
Not Available
9
plate
GU23764910
Not Available
10
Rubber spacer
GU17765560
Not Available
11
Lamp 12V-3W
GU93450120
Not Available
12
Speedometer transmission
GU27760410
£21,67 Unit Price incl. VAT
13
plate
GU23766510
£60,88 Unit Price incl. VAT
14
Rev counter transmission
GU23768110
£50,98 Unit Price incl. VAT
15
Lower cover
GU29765250
Not Available
16
Self-tap screw
GU99210210
£3,26 Unit Price incl. VAT
17
Lampholder
GU19768680
£8,40 Unit Price incl. VAT
18
Lamp
GU93450140
Not Available
19
U-bolt
GU23764110
Not Available
20
Spacer
GU23766911
£10,08 Unit Price incl. VAT
22
Washer
GU95004205
£1,13 Unit Price incl. VAT
23
Hex screw
GU98054320
£0,96 Unit Price incl. VAT
24
Washer 6,15x11x0,8
GU95004206
Not Available
25
Rubber spacer
GU91551085
Not Available
26
Spacer
GU91180607
Not Available
27
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
28
Turn indicator switch
GU28745760
Not Available
28
Turn indicator switch
GU28745761
Not Available
29
Rubber protection
GU35755780
Not Available
30
Rubber spacer
GU93110060
£1,09 Unit Price incl. VAT
31
screw
GU98054230
Not Available
32
Spacer
GU23766910
£10,08 Unit Price incl. VAT
33
Special washer
GU61013800
£1,26 Unit Price incl. VAT
34
Gear Z=14
GU14769200
Not Available
35
Reset button
GU19762810
Not Available
36
Ring nut
GU19741336
Not Available
37
Main switch
GU31735360
Not Available

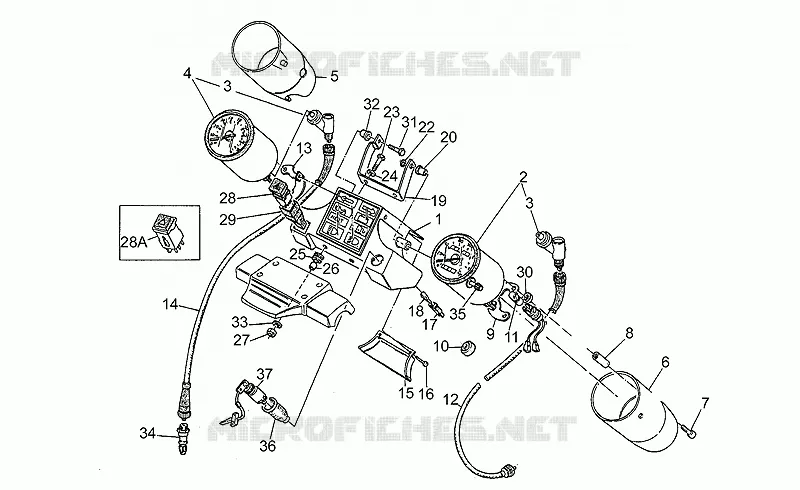

Find the detailed Dashboard MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
