1
Engine displacement
650
2
Model
V65
3
Year
1990
4
Trim
V 65 Florida
5
Parts Catalog
Bevel gear
6
Parts Diagram
Parts Catalog
Body
by
Dashboard
Bevel gear
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
28
29
30
31
32
33
34
35
36
37
38
39
40
41
43
44
45
46
47
1
Transmission cover
GU31350331
Not Available
2
Clearance washer
GU19351900
£10,06 Unit Price incl. VAT
3
Gasket ring 35x47x7
GU90403547
£10,73 Unit Price incl. VAT
4
Clearance washer
GU19351100
£2,22 Unit Price incl. VAT
5
Roller bearing 35x50x17
GU92252235
Not Available
6
Oil filler plug
GU31351200
Not Available
7
O-ring 20,24X2,62
GU90706203
£1,39 Unit Price incl. VAT
8
Oil unload plug M10x1
GU31003766
£15,77 Unit Price incl. VAT
8
Oil plug
GU95980213
£15,28 Unit Price incl. VAT
9
Gasket
GU10528900
£4,45 Unit Price incl. VAT
10
Breather plug
GU31206500
Not Available
11
Gasket
GU10528900
£4,45 Unit Price incl. VAT
12
Stud bolt
GU96508055
£9,60 Unit Price incl. VAT
13
Cover
GU27350410
Not Available
13
Cover
GU19350421
Not Available
14
Ball bearing 70x110x13
GU92201070
£129,37 Unit Price incl. VAT
15
Gasket ring 75x90x8
GU90407590
£16,36 Unit Price incl. VAT
16
Pin
GU19351401
£587,17 Unit Price incl. VAT
17
Stop ring
GU90353030
£1,58 Unit Price incl. VAT
18
Bevel gear Z=8/31
GU19354621
Not Available
19
screw
GU19356320
£2,10 Unit Price incl. VAT
20
Tap.roller bearing
GU92249223
Not Available
21
Spacer 1,3 mm
GU19355410
£15,95 Unit Price incl. VAT
21
Spacer 1,1 mm
GU19355406
£16,00 Unit Price incl. VAT
21
Spacer 1,5 mm
GU19355412
£15,29 Unit Price incl. VAT
21
Spacer 0,8 mm
GU19355400
£16,14 Unit Price incl. VAT
21
Spacer 1 mm
GU19355404
£15,32 Unit Price incl. VAT
21
Spacer 1,2 mm
GU19355408
£15,29 Unit Price incl. VAT
21
Spacer 0,9 mm
GU19355402
£15,97 Unit Price incl. VAT
21
Spacer 1,4 mm
GU19355411
£15,29 Unit Price incl. VAT
21
Spacer 1,6 mm
GU19355413
£16,40 Unit Price incl. VAT
22
Gasket
GU19350700
£4,32 Unit Price incl. VAT
23
Thrust washer
GU19352300
£10,73 Unit Price incl. VAT
24
Thrust washer
GU19353500
£7,98 Unit Price incl. VAT
25
screw
GU19357660
£1,02 Unit Price incl. VAT
26
Spring washer 8x15x0,3
GU61270300
£1,70 Unit Price incl. VAT
28
Rear brake disc
GU19635736
£382,63 Unit Price incl. VAT
29
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
30
screw
GU98054418
Not Available
31
Bearing casing
GU19352401
£41,53 Unit Price incl. VAT
32
Roller bearing 20x47x14
GU92249220
£106,96 Unit Price incl. VAT
33
Spacer 1,1 mm
GU19355301
£13,12 Unit Price incl. VAT
33
Spacer 1 mm
GU19355300
£13,21 Unit Price incl. VAT
33
Spacer 1,4 mm
GU19355304
£12,42 Unit Price incl. VAT
33
Spacer 1,5 mm
GU19355305
£12,49 Unit Price incl. VAT
33
Spacer 1,6 mm
GU19355306
£12,49 Unit Price incl. VAT
33
Spacer 1,8 mm
GU19355308
£1,33 Unit Price incl. VAT
33
Spacer 1,7 mm
GU19355307
£12,49 Unit Price incl. VAT
33
Spacer 1,3 mm
GU19355303
£12,67 Unit Price incl. VAT
33
Spacer 1,9 mm
GU19355309
£12,48 Unit Price incl. VAT
33
Spacer 1,2 mm
GU19355302
£12,95 Unit Price incl. VAT
34
Spacer
GU19355121
£11,15 Unit Price incl. VAT
35
Shim 0,1 mm
GU19355200
£2,04 Unit Price incl. VAT
36
Shim 0,15 mm
GU19355202
£3,65 Unit Price incl. VAT
37
Spacer
GU19356801
£30,61 Unit Price incl. VAT
38
Gasket ring 18,77X1,78
GU90706188
£1,39 Unit Price incl. VAT
39
Nut
GU19356700
£21,74 Unit Price incl. VAT
40
Gasket ring
GU90706552
£1,20 Unit Price incl. VAT
41
Gasket ring
GU90403247
£12,61 Unit Price incl. VAT
43
Nut
GU92602208
Not Available
44
Spacer 1,1 mm
GU19355321
£16,32 Unit Price incl. VAT
44
Spacer 1,7 mm
GU19355327
£16,18 Unit Price incl. VAT
44
Spacer 1,6 mm
GU19355326
£15,95 Unit Price incl. VAT
44
Spacer 1,3 mm
GU19355323
£14,56 Unit Price incl. VAT
44
Spacer 1,8 mm
GU19355328
£15,95 Unit Price incl. VAT
44
Spacer 1,4 mm
GU19355324
£15,95 Unit Price incl. VAT
44
Spacer 1 mm
GU19355320
£16,28 Unit Price incl. VAT
44
Spacer 1,9 mm
GU19355329
£15,95 Unit Price incl. VAT
44
Spacer 1,2 mm
GU19355322
£16,28 Unit Price incl. VAT
44
Spacer 1,5 mm
GU19355325
£16,32 Unit Price incl. VAT
45
O-ring
GU90706076
£0,89 Unit Price incl. VAT
46
Plate
GU27357411
Not Available
47
Spacer
GU27634110
£37,38 Unit Price incl. VAT

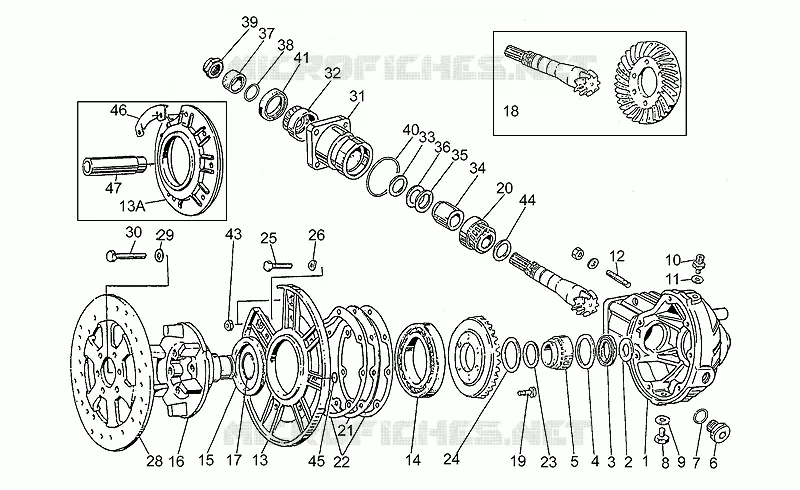

Find the detailed Bevel gear MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
