1
Engine displacement
650
2
Model
V65
3
Year
1990
4
Trim
V 65 Florida
5
Parts Catalog
Windscreen-Front bumpers
6
Parts Diagram
Parts Catalog
Magura handlebar controls
by
Mudguards
Windscreen-Front bumpers
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
26
26
26
27
27
28
29
30
31
32
33
34
1
Windscreen
GU23577270
£362,22 Unit Price incl. VAT
2
Windscreen support
GU66506820
Not Available
3
RH clamp
GU23506810
Not Available
4
LH clamp
GU23506910
Not Available
5
Washer 10,2x18x2
GU95004210
£0,96 Unit Price incl. VAT
6
screw
GU98622535
Not Available
7
Plug
GU23943510
£3,34 Unit Price incl. VAT
8
Nut M10x1,5
GU92630510
£1,58 Unit Price incl. VAT
9
screw
GU98326016
£1,66 Unit Price incl. VAT
10
Rubber spacer
GU93110060
£1,09 Unit Price incl. VAT
11
Washer 6,25X11X1
GU95100119
£1,27 Unit Price incl. VAT
12
Rubber spacer
GU23576910
Not Available
13
Front bumper
GU23450210
Not Available
14
RH footrest
GU23447610
Not Available
15
LH footrest
GU23447710
Not Available
16
screw
GU98622545
£2,00 Unit Price incl. VAT
17
Washer
GU95120105
£1,04 Unit Price incl. VAT
18
Nut
GU92602210
Not Available
19
Hex socket screw
GU98620350
£1,58 Unit Price incl. VAT
20
Washer 6,15x11x0,8
GU95004206
Not Available
21
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
22
Steering shock absorber
GU17530260
Not Available
23
Bracket
GU23531860
Not Available
24
Spacer
GU91180618
£12,61 Unit Price incl. VAT
25
screw
GU98620340
£0,61 Unit Price incl. VAT
26
Washer
GU95000206
£1,02 Unit Price incl. VAT
27
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
28
screw
GU98620345
£0,37 Unit Price incl. VAT
29
Hex socket screw
GU98622425
£6,13 Unit Price incl. VAT
30
Spring washer
GU95021108
£1,13 Unit Price incl. VAT
31
Washer
GU95000208
£5,23 Unit Price incl. VAT
32
Nut
GU92602208
Not Available
33
screw
GU98072570
Not Available
34
Spacer
GU23451170
Not Available

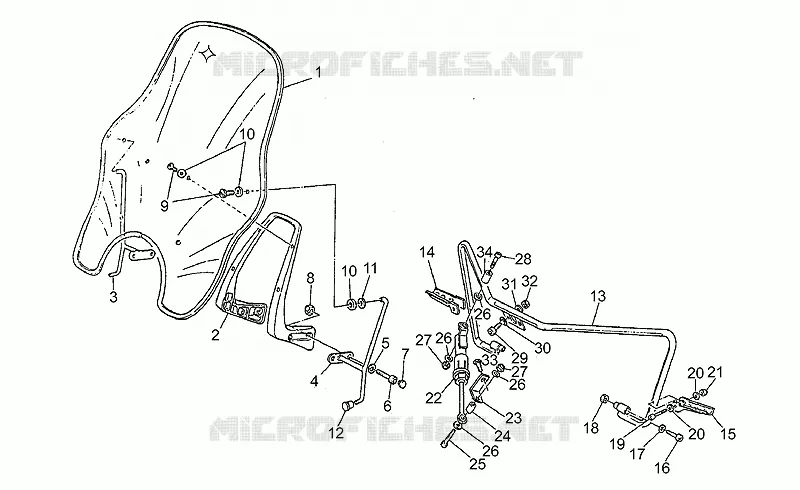

Find the detailed Windscreen-Front bumpers MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
