1
Engine displacement
850
2
Model
V9
3
Year
2016
4
Trim
V9 Bobber
5
Parts Catalog
Timing system
6
Parts Diagram
Parts Catalog
Front brake caliper
by
Gear box - Gear assembly
Timing system
1
2
2
3
3
3
3
4
4
4
4
5
5
5
6
6
7
7
7
8
8
8
8
9
9
9
10
10
10
10
11
12
12
13
13
14
14
14
15
15
15
15
16
16
17
18
19
19
20
21
22
23
24
25
26
27
27
1
Camshaft
1A005712
Not Available
2
Sector
GU19055700
£30,97 Unit Price incl. VAT
3
Tappet
GU19045861
£276,40 Unit Price incl. VAT
4
Rocker arm rod
2A000496
£11,69 Unit Price incl. VAT
5
O-Ring seal ring 2,62x9.19
2A000579
£1,87 Unit Price incl. VAT
6
Rocker arm support
2A0003535
£31,09 Unit Price incl. VAT
7
Curved spring washer
1A005951
Not Available
8
Rocker shaft
2A000528
£61,15 Unit Price incl. VAT
9
Fork
2A000521
£33,46 Unit Price incl. VAT
10
Screw w/ flange M5x12
AP8152272
£1,88 Unit Price incl. VAT
11
Chain stretching drive
GU19058220
Not Available
12
Left exhaust right intake rocker
1A004905
Not Available
13
Right exhaust left intake rocker
1A004903
Not Available
14
Adjuster screw
1A004907
Not Available
15
Nut
GU10034100
£13,40 Unit Price incl. VAT
16
Gasket ring
1A006861
Not Available
17
Snap ring
GU90353029
£1,43 Unit Price incl. VAT
18
Washer
GU95129115
£0,86 Unit Price incl. VAT
19
Plate
1A005955
Not Available
20
Camshaft chain
GU19058021
£205,50 Unit Price incl. VAT
21
Timing system gear
1A006243
Not Available
22
Spacer
1A006119
Not Available
23
Oring
1A006127
Not Available
24
Phonic wheel
1A0057145
Not Available
25
FLANGED HEXAGONAL HEAD SCREW
1A008576
Not Available
26
screw
GU98882316
£0,89 Unit Price incl. VAT
27
Plate
2A000527
£11,90 Unit Price incl. VAT

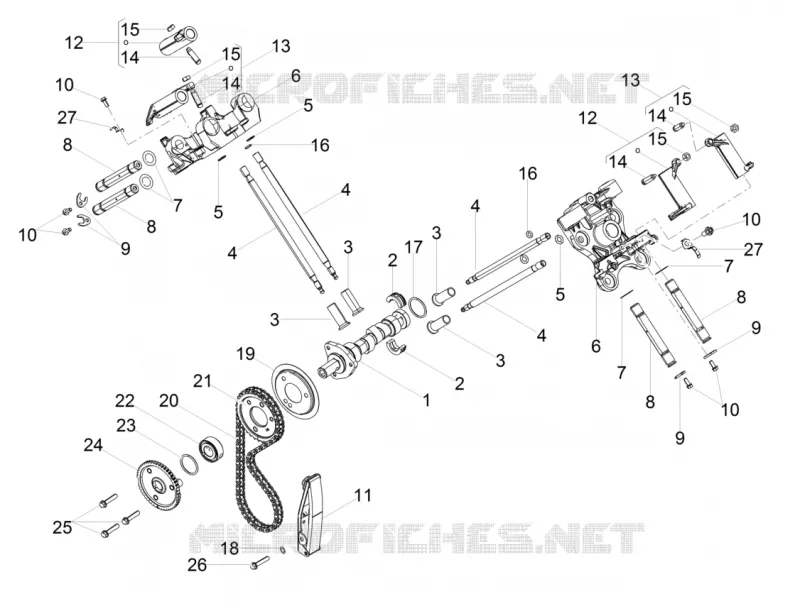

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
