Parts Catalog
Rear transmission / Components
6
Parts Diagram
Parts Catalog
Rear lights
by
Rear electrical system
Rear transmission / Components
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
Nut M25x1,5
976649
£21,32 Unit Price incl. VAT
2
Gasket ring
2B000404
£27,80 Unit Price incl. VAT
3
Spacer
2B001311
£25,54 Unit Price incl. VAT
4
Gasket ring 18,77X1,78
GU90706188
£1,39 Unit Price incl. VAT
5
Gasket 58,42x2,62
GU90706584
£1,60 Unit Price incl. VAT
6
Gasket 10x18x1,5
GU01528930
£4,21 Unit Price incl. VAT
7
Oil unload plug M10x1
GU31003766
£15,77 Unit Price incl. VAT
8
Washer
224566
£0,83 Unit Price incl. VAT
9
Oil plug M12x1,5
GU05351230
£13,44 Unit Price incl. VAT
10
Washer
GU37359005
£13,40 Unit Price incl. VAT
11
Spacer
2B001307
£21,20 Unit Price incl. VAT
12
Gasket ring 38X50X7
GU90413850
£38,47 Unit Price incl. VAT
13
Gasket ring
GU12351100
£70,49 Unit Price incl. VAT
14
Roller bearing 40x55x17
GU92254340
Not Available
15
Washer for shafts
2B002200
£1,13 Unit Price incl. VAT
16
Circlip
B064304
£2,72 Unit Price incl. VAT
17
Clearance washer
GU19351100
£2,22 Unit Price incl. VAT
18
Crown fixing ring nut
2B002536
£25,44 Unit Price incl. VAT
19
O-ring 158,42X2,62
GU90706958
£3,44 Unit Price incl. VAT
20
Spacer 0,7 mm
GU04355101
£21,19 Unit Price incl. VAT
20
Spacer 1,2 mm
GU04355106
£16,84 Unit Price incl. VAT
20
Spacer 0,6 mm
GU04355100
£19,32 Unit Price incl. VAT
20
Spacer 1,1 mm
GU04355105
£17,92 Unit Price incl. VAT
20
Spacer 0,8 mm
GU04355102
£20,34 Unit Price incl. VAT
20
Spacer 0,9 mm
GU04355103
£17,09 Unit Price incl. VAT
20
Spacer 1 mm
GU04355104
£18,61 Unit Price incl. VAT
21
Cap
2B002807
£4,22 Unit Price incl. VAT
22
Breather plug
2A000438
£10,16 Unit Price incl. VAT
23
Complete flange
2B0033875
£96,97 Unit Price incl. VAT
24
Gasket ring 80x100x10
2B002535
£28,87 Unit Price incl. VAT
25
Flexible couplings hub
2B001303
Not Available
26
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
27
Special cap screw 8x25
2B002171
£0,86 Unit Price incl. VAT

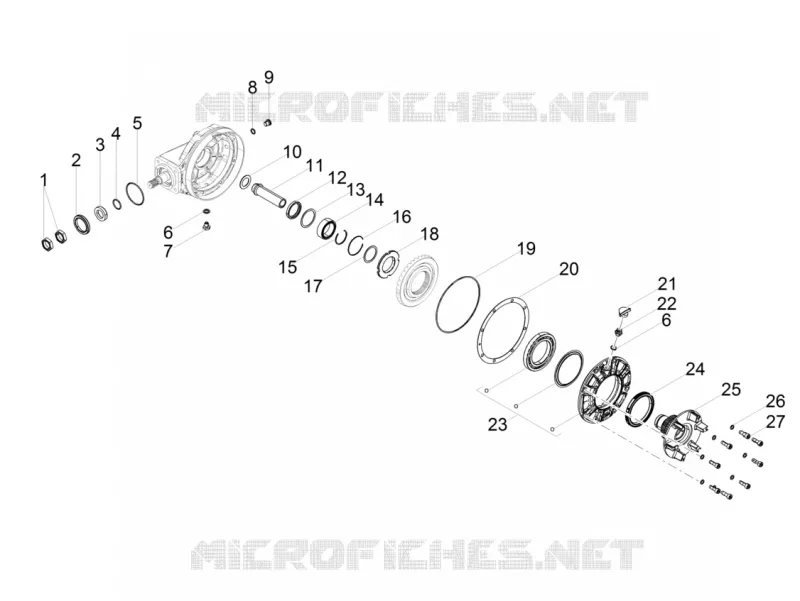

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
