Engine displacement
850
2
Model
V9
3
Year
2016
4
Trim
V9 Bobber
5
Parts Catalog
Front electrical system
6
Parts Diagram
Parts Catalog
Frame
by
Decal
Front electrical system
1
2
3
4
5
6
7
8
9
10
11
12
1
Cable harness
2D000209
£740,52 Unit Price incl. VAT
2
Socket USB
643277
Not Available
3
Horn
2B000221
£46,57 Unit Price incl. VAT
4
Vite TCB M6x16
AP8150377
£2,47 Unit Price incl. VAT
5
Spring plate M6
254485
£1,64 Unit Price incl. VAT
6
Air temp. Sensor
AP8124936
£82,98 Unit Price incl. VAT
7
Voltage regulator
1D001549
£120,54 Unit Price incl. VAT
8
Hose clamp 2,4x92
GU49609601
£0,90 Unit Price incl. VAT
9
Hose clamp 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
10
Encoder sensor
832029
Not Available
11
O-ring
GU90706141
Not Available
12
Hex socket screw
122675
£0,38 Unit Price incl. VAT

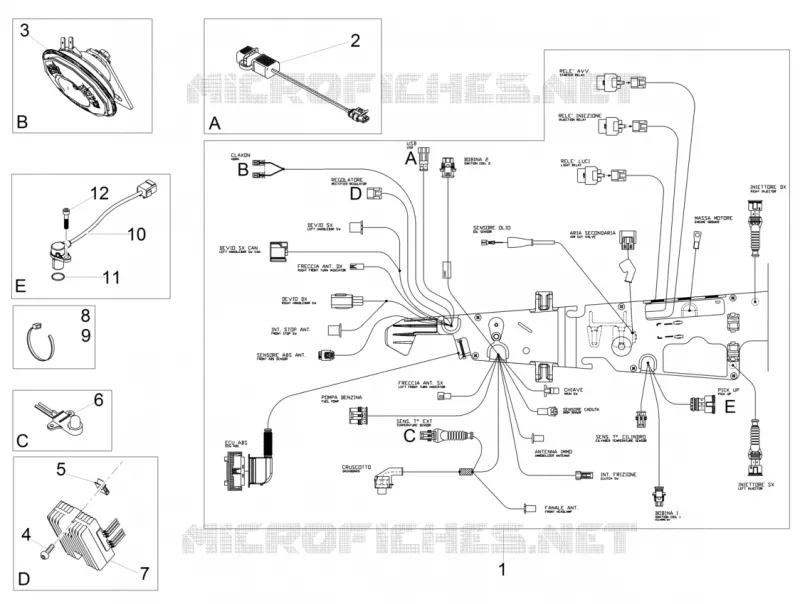

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
