Engine displacement
850
2
Model
V9
3
Year
2016
4
Trim
V9 Bobber
5
Parts Catalog
Central electrical system
6
Parts Diagram
Parts Catalog
Starter / Electric starter
by
Handlebar - Controls
Central electrical system
1
2
3
4
5
5
6
6
7
7
8
8
9
10
11
12
13
13
14
14
15
16
17
18
19
19
20
21
21
1
Cable harness
2D000209
£740,52 Unit Price incl. VAT
2
Hose clamp 2,4x92
GU49609601
£0,90 Unit Price incl. VAT
3
Hose clamp 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
4
Relay 12V-30A
AP8224462
£24,32 Unit Price incl. VAT
5
Screened cap
1A005382
Not Available
6
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
7
Spark plug NGK CPR8EB-9
887481
£18,19 Unit Price incl. VAT
8
Insulating cap
641040
£7,73 Unit Price incl. VAT
9
Fall sensor
680212
£94,66 Unit Price incl. VAT
10
Washer 5,2x18x1,5
GU95005304
£2,48 Unit Price incl. VAT
11
Self-tap screw
478533
£0,98 Unit Price incl. VAT
12
Spark plug cable retainer
2B002901
£2,11 Unit Price incl. VAT
13
T bushing
2B003052
£3,49 Unit Price incl. VAT
14
Oval head screw
1A003444
£1,20 Unit Price incl. VAT
15
HT coil
641901
£118,08 Unit Price incl. VAT
16
HT coil DX
642034
£57,73 Unit Price incl. VAT
17
HT wire (450 mm)
CM277101
£23,08 Unit Price incl. VAT
18
HT wire (580 mm)
CM277102
£23,08 Unit Price incl. VAT
19
H.V. cable
080341
Not Available
20
Temp. Sensor
887421
£147,26 Unit Price incl. VAT
21
Cappuccio termorestringente
2D000355
£31,12 Unit Price incl. VAT

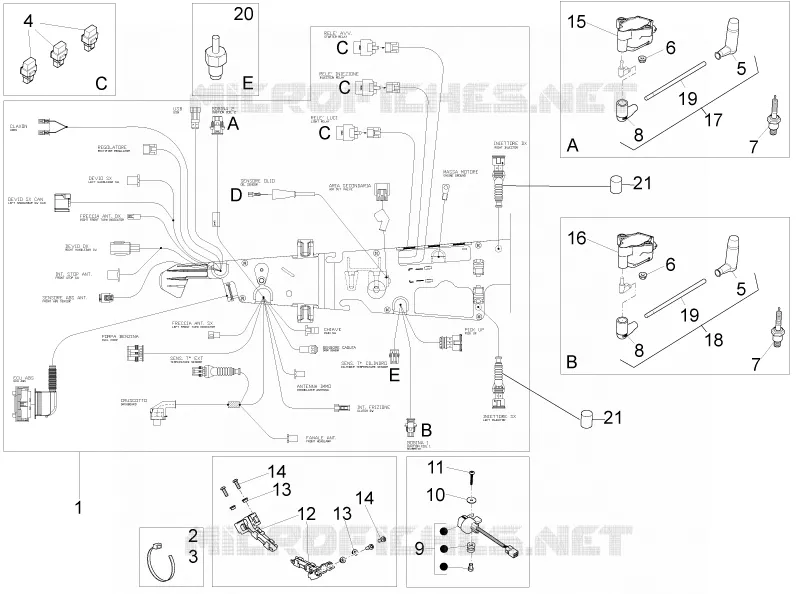

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
