Engine displacement
850
2
Model
V9
3
Year
2016
4
Trim
V9 Bobber
5
Parts Catalog
Rear master cylinder
6
Parts Diagram
Parts Catalog
Cylinder head - valves
by
Front brake caliper
Rear master cylinder
1
1
2
3
4
5
6
7
8
9
9
10
11
11
12
13
14
15
16
17
17
18
19
20
21
21
22
23
24
25
26
27
28
28
29
30
31
32
33
33
34
35
36
37
1
Rear brake master cylinder with reservoir
2B002189
£153,48 Unit Price incl. VAT
2
Nut
GU92606206
£1,02 Unit Price incl. VAT
3
O-ring OR112
AP8120178
£4,69 Unit Price incl. VAT
4
Fork
AP8113081
£16,07 Unit Price incl. VAT
5
Gear selector fork clips
AP8113082
£18,83 Unit Price incl. VAT
6
Dado autobloccante M6x1
GU92630206
£2,48 Unit Price incl. VAT
7
Hex socket screw M6x35
AP8150285
£1,94 Unit Price incl. VAT
8
Hex socket screw
GU98680445
£1,02 Unit Price incl. VAT
9
stop Button
2D0002805
£32,02 Unit Price incl. VAT
10
Sintered bushing
895328
£6,22 Unit Price incl. VAT
11
Fixing pin
859946
£9,66 Unit Price incl. VAT
12
Washer 5,3x10x1*
AP8150012
£3,02 Unit Price incl. VAT
13
Complete rear brake lever
2B002233
£119,09 Unit Price incl. VAT
14
Fixing pin
859946
£9,66 Unit Price incl. VAT
15
Rear brake lever spring
AP8121927
£15,10 Unit Price incl. VAT
16
Rubber pedal
887908
Not Available
17
Lever rubber
AP8120912
£3,68 Unit Price incl. VAT
18
Lever pin
884033
Not Available
19
O-ring 11,11x1,78
AP8144007
£1,39 Unit Price incl. VAT
20
Hex socket screw M6x25
GU98370625
£5,23 Unit Price incl. VAT
21
screw TSPEI IX M8X25
2B004112
£0,30 Unit Price incl. VAT
22
screw TEF M10X45
967384
£7,48 Unit Price incl. VAT
23
screw TSPEI M5x20
658778
£0,95 Unit Price incl. VAT
24
Piastra pedana pilota dx
2B004042
£122,69 Unit Price incl. VAT
25
Rear brake lever spring
AP8121927
£15,10 Unit Price incl. VAT
26
Nut
GU92606206
£1,02 Unit Price incl. VAT
27
Supporto interruttore stop
2B004063
£39,50 Unit Price incl. VAT
28
Springs fixing pin
898286
£71,34 Unit Price incl. VAT
29
Fermacorsa pedale freno post.
2B004064
£20,99 Unit Price incl. VAT
30
Rubber pedal
2B004062
£30,92 Unit Price incl. VAT
31
Lever rubber
AP8120912
£3,68 Unit Price incl. VAT
32
screw TSPEI M6x50
2B004111
£0,70 Unit Price incl. VAT
33
Nut M6
GU92630707
£2,04 Unit Price incl. VAT
34
Rear master cyl.rod
2B004076
£14,93 Unit Price incl. VAT
35
Crinkle washer D15 F8,4 S1,5 - INOX
658837
£0,95 Unit Price incl. VAT
36
Spacer
2B004107
£4,96 Unit Price incl. VAT
37
Complete rear brake lever
2B004050
£363,66 Unit Price incl. VAT

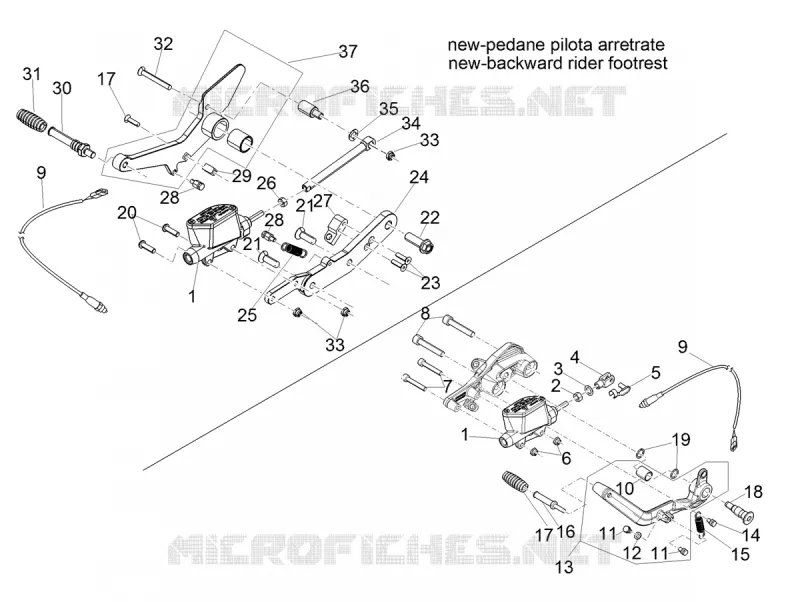

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
