Parts Catalog
Foot rests
6
Parts Diagram
Parts Catalog
Head cover
by
Lubrication
Foot rests
1
2
3
4
5
5
5
5
6
7
8
9
10
10
10
10
11
11
11
11
12
12
13
13
13
13
14
14
15
15
16
16
17
17
17
17
18
18
19
19
20
20
21
22
22
23
23
23
23
24
24
1
RH front footrest bracket
2B002218
£75,06 Unit Price incl. VAT
2
LH front footrest bracket
2B002219
£115,75 Unit Price incl. VAT
3
Right pass. footrest support
2B003077
£142,22 Unit Price incl. VAT
4
Left pass. footrest support
2B003076
£142,22 Unit Price incl. VAT
5
Footrest rubber
2B002225
£8,00 Unit Price incl. VAT
6
RH Foot rests
AP8145034
Not Available
7
LH Foot rests
AP8145035
Not Available
8
Rear footrest, RH
GU32442310
Not Available
9
Rear footrest, LH
GU32442710
Not Available
10
Plate
GU32441210
£10,54 Unit Price incl. VAT
11
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
12
Footrest pin
B063907
Not Available
13
Hex socket screw
GU98680445
£1,02 Unit Price incl. VAT
14
Footrest pin
CM228401
£3,17 Unit Price incl. VAT
15
Pin
AP8121567
£19,96 Unit Price incl. VAT
16
Footrest return spring
AP8221277
£10,54 Unit Price incl. VAT
17
Stop ring
AP8120573
£0,73 Unit Price incl. VAT
18
Footrest plate
AP8134451
£5,77 Unit Price incl. VAT
19
Coil compress. spring
AP8121133
£3,22 Unit Price incl. VAT
20
Ball D6,35
AP8101861
£0,36 Unit Price incl. VAT
21
Special cap screw 8x25
2B002171
£0,86 Unit Price incl. VAT
22
Rider footrest support
2B004044
£84,78 Unit Price incl. VAT
23
O-ring 18x2
AP9100477
£5,14 Unit Price incl. VAT
24
screw TEF M10X45
967384
£7,48 Unit Price incl. VAT

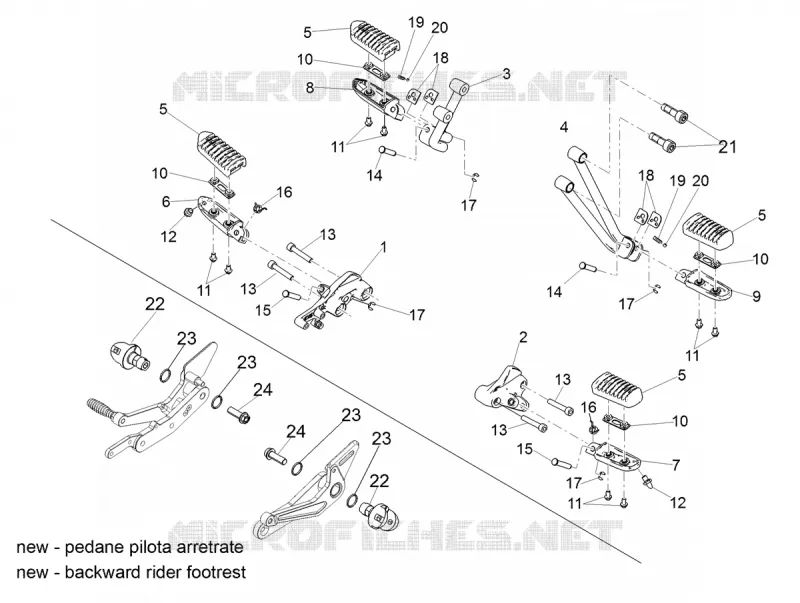

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
