Engine displacement
1200
2
Model
GRISO
3
Year
2007
4
Trim
Griso 8V E3
5
Parts Catalog
Front fork
6
Parts Diagram
Parts Catalog
Saddle
by
Transmission cage
Front fork
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
28
1
RH radial sleeve
978160
£1 552,63 Unit Price incl. VAT
2
LH radial sleeve
978159
£1 954,15 Unit Price incl. VAT
3
Sleeve
978487
Not Available
4
Plunger attachment bush
AP8123810
£15,16 Unit Price incl. VAT
5
Spring
AP8163495
£10,58 Unit Price incl. VAT
6
Preload tube cpl.
AP8123832
£166,84 Unit Price incl. VAT
7
Spacer
AP8123835
£15,16 Unit Price incl. VAT
8
Washer
AP8123836
£7,91 Unit Price incl. VAT
9
Plunger, complete
AP8163496
Not Available
10
Washer
AP8123816
£12,65 Unit Price incl. VAT
11
Ring
AP8123815
£15,16 Unit Price incl. VAT
12
Sleeve plug cpl.
AP8123817
Not Available
13
O-ring
AP8123834
£7,74 Unit Price incl. VAT
14
O-ring
AP8123819
£15,16 Unit Price incl. VAT
15
O-ring
AP8123820
£15,16 Unit Price incl. VAT
16
Stop ring
AP8123821
£12,65 Unit Price incl. VAT
17
Screw w/ flange M8x40
AP8152290
£2,63 Unit Price incl. VAT
18
RH hub cpl.
978456
£707,09 Unit Price incl. VAT
19
LH hub cpl.
978455
£722,80 Unit Price incl. VAT
20
Dust cover
AP8123824
£34,81 Unit Price incl. VAT
21
Circlip
981013
Not Available
22
Oil seal
AP8123825
£32,47 Unit Price incl. VAT
23
Ring
981012
Not Available
24
Bush D.47,1xd.43xh.20
AP8123827
Not Available
25
Bush D.44,5xd.41,1xh.20
AP8123828
Not Available
26
Special washer
AP8123811
£12,65 Unit Price incl. VAT
27
screw M10x1,5
AP8123812
£24,38 Unit Price incl. VAT
28
Reflector, amber
GU05781630
£18,60 Unit Price incl. VAT

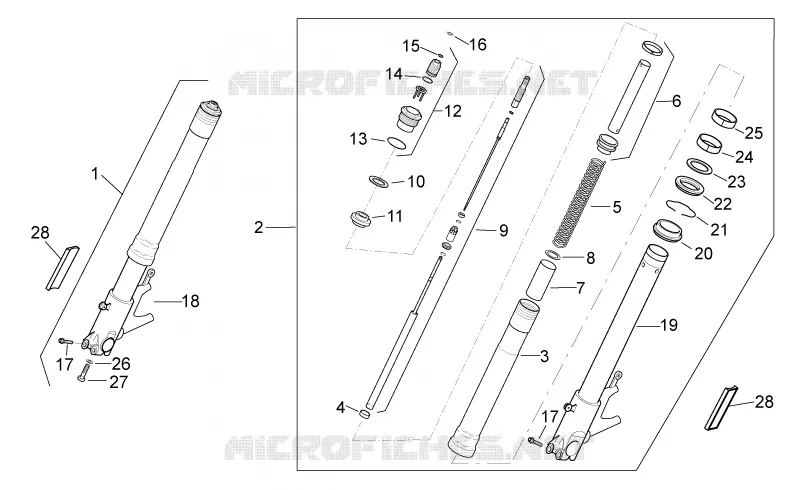

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
