Engine displacement
1200
2
Model
GRISO
3
Year
2007
4
Trim
Griso 8V E3
5
Parts Catalog
LH cylinder timing system I
6
Parts Diagram
Parts Catalog
Front mudguard
by
Exhaust unit
LH cylinder timing system I
1
2
2
3
4
5
5
6
6
7
8
9
10
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
Spacer 1,10
CM162703
£12,54 Unit Price incl. VAT
1
Spacer 1,12
CM162704
£12,54 Unit Price incl. VAT
1
Spacer 1,14
CM162705
£13,16 Unit Price incl. VAT
1
Spacer 1,08
CM162702
£13,16 Unit Price incl. VAT
1
Spacer 1,06
CM162701
£13,16 Unit Price incl. VAT
2
Spring washer 5,3X10X0,5
GU95129100
£0,58 Unit Price incl. VAT
3
Cylinder head gasket 0,85 mm
874622
£80,96 Unit Price incl. VAT
3
Cylinder head gasket 0,65 mm
874621
£72,59 Unit Price incl. VAT
3
Cylinder head gasket 1,05 mm
976311
£83,30 Unit Price incl. VAT
4
LH.Rocker arm support
880881
£173,59 Unit Price incl. VAT
4
LH.Rocker arm support
873425
Not Available
5
screw M8x30
015792
Not Available
6
Pin D. 2,5
872759
£16,14 Unit Price incl. VAT
7
Nut M10x1,25 6H
833520
£0,76 Unit Price incl. VAT
8
Right exhaust left intake rocker
B013603
Not Available
8
Rocker arm assy.
976359
Not Available
9
Left exhaust right intake rocker
B013605
Not Available
9
Rocker arm assy.
976360
Not Available
10
Adjuster screw
879707
£42,85 Unit Price incl. VAT
10
Adjuster screw
873850
Not Available
11
Nut
484819
£1,33 Unit Price incl. VAT
11
Rocker arm adjuster nut
879916
£7,85 Unit Price incl. VAT
12
Rocker arm rod
873631
£32,44 Unit Price incl. VAT
12
Rocker arm rod
B015681
£32,44 Unit Price incl. VAT
13
Bucket tappet for hydraulic tappet
B014603
£58,15 Unit Price incl. VAT
14
Screw w/ flange M6x120
487444
£22,22 Unit Price incl. VAT
15
Plain washer 12x6,1x2
976674
£5,14 Unit Price incl. VAT
16
Camshaft
873873
Not Available
16
Camshaft
8776384
Not Available
17
Pin
976589
£0,66 Unit Price incl. VAT
18
Timing gear
976350
£269,21 Unit Price incl. VAT
19
sheet oil breather
874601
Not Available
20
Screw w/ flange
843060
Not Available
21
O-ring 47,35X1,78
872814
£7,40 Unit Price incl. VAT
21
O-ring 44.17X1.78
976584
£6,26 Unit Price incl. VAT
22
Breather cover cpl.
976690
£55,38 Unit Price incl. VAT
22
Breather cover cpl.
874521
£34,61 Unit Price incl. VAT
23
Hex socket screw
GU98350210
£1,26 Unit Price incl. VAT
23
screw
GU98622214
£0,98 Unit Price incl. VAT
24
Camshaft chain
976341
£116,12 Unit Price incl. VAT
25
Chain guide plate
976338
£15,74 Unit Price incl. VAT
26
Chain tensioner sliding block
976337
£15,78 Unit Price incl. VAT
27
Spacer screw
974228
£12,19 Unit Price incl. VAT
28
LH chain tensioner
873690
£109,21 Unit Price incl. VAT
29
Spacer
244585
£1,87 Unit Price incl. VAT
30
Plate
874805
£44,10 Unit Price incl. VAT
31
Distribution transformation kit "B"
1A002063
Not Available
31
Distribution transformation kit "C"
1A002082
Not Available
31
Distribution transformation kit "A"
1A002060
Not Available

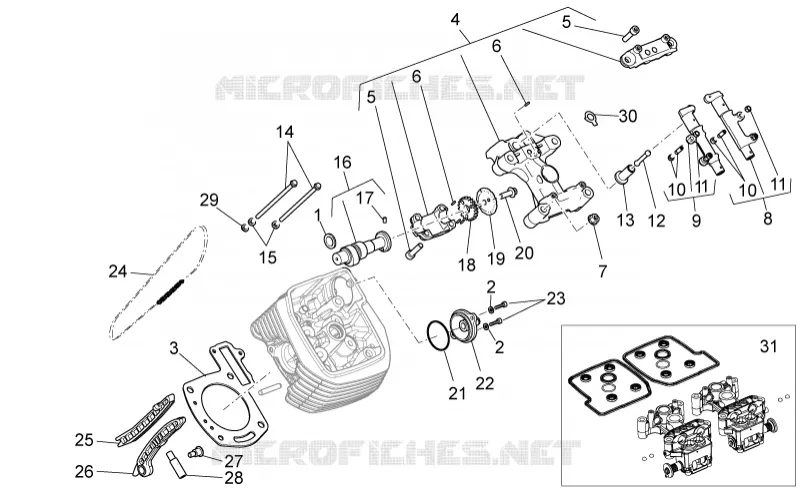

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
