1
Engine displacement
1200
2
Model
GRISO
3
Year
2007
4
Trim
Griso 8V E3
5
Parts Catalog

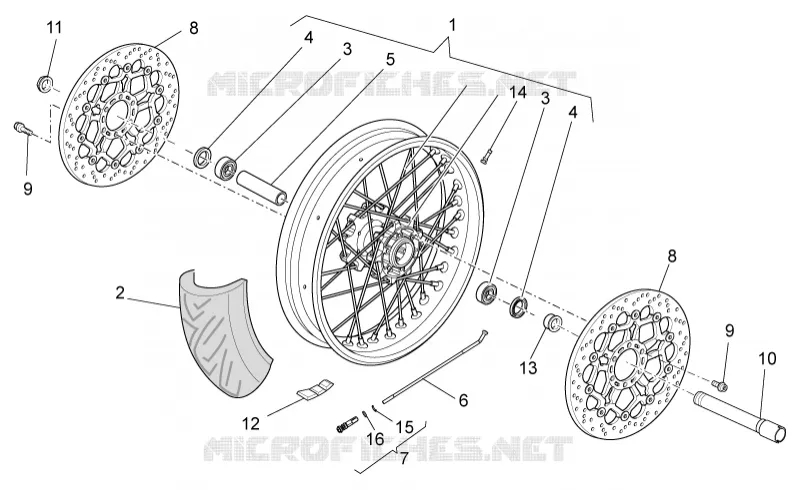

SE Front wheel
6
Parts Diagram
Parts Catalog
Front body - Duct
by
Headlight/Horn
SE Front wheel
1
2
3
3
4
4
5
6
7
8
8
9
9
10
11
12
13
14
15
16
1
Front wheel, black 3,5X17"
884163
£1 559,96 Unit Price incl. VAT
1
Front wheel, black 3,5X17"
884077
Not Available
1
Front wheel, black 3,5x17"
978528
Not Available
2
Front tyre 120/70 ZR 17"
97717R
Not Available
2
Front/rear tyre
2B000182
Not Available
3
Ball bearing 25x47x12
AP8125777
£10,52 Unit Price incl. VAT
4
Gasket ring 30x47x7
AP8125773
£2,63 Unit Price incl. VAT
5
Spacer
978516
£42,07 Unit Price incl. VAT
6
Front spoke
887084
£9,31 Unit Price incl. VAT
6
Spoke
978530
£7,03 Unit Price incl. VAT
7
Nipples L=34
978810
£13,21 Unit Price incl. VAT
8
Front brake disc 320
883688
£303,14 Unit Price incl. VAT
8
Front brake disc
978764
Not Available
9
screw
GU05611430
£2,36 Unit Price incl. VAT
10
Front wheel spindle
978497
£334,81 Unit Price incl. VAT
11
Nut
GU01612190
£10,82 Unit Price incl. VAT
12
Counterweight
GU14616150
£18,94 Unit Price incl. VAT
13
Spacer
978498
£16,44 Unit Price incl. VAT
14
Tubeless tyre valve
AP8101744
£14,65 Unit Price incl. VAT
15
Snap ring
978811
£2,47 Unit Price incl. VAT
16
O-ring OR2025
GU90706061
£2,47 Unit Price incl. VAT

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
