Engine displacement
1200
2
Model
GRISO
3
Year
2007
4
Trim
Griso 8V E3
5
Parts Catalog
Rear body - Mudguard
6

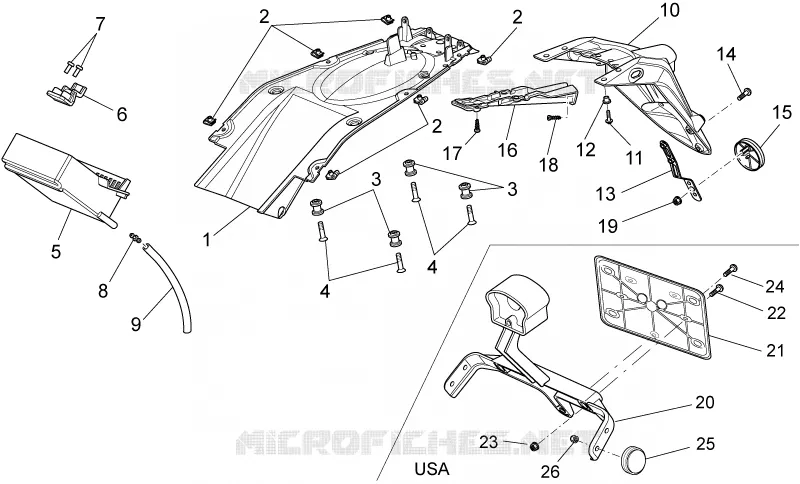

Parts Diagram
Parts Catalog
Internal fuel pump
by
Plate set-decal-op.handbooks
Rear body - Mudguard
1
2
2
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
Splash guard
GU06438700
£49,09 Unit Price incl. VAT
2
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
3
Stud bolt
GU06467300
Not Available
4
screw
GU98250835
£2,36 Unit Price incl. VAT
5
Battery holder
GU06704800
£26,12 Unit Price incl. VAT
6
Battery fixing plate
GU06418600
£10,74 Unit Price incl. VAT
7
Vite TCB M6x16
AP8150377
£2,47 Unit Price incl. VAT
8
Joint
GU06704700
£4,68 Unit Price incl. VAT
9
Breather pipe 4x8
AP8220263
Not Available
10
License plate
GU06438600
£30,06 Unit Price incl. VAT
11
Hex socket screw
GU98680222
£2,47 Unit Price incl. VAT
12
T bush 6,5x8,6x9
AP8121929
£18,25 Unit Price incl. VAT
13
Reflector support
AP8134448
£29,83 Unit Price incl. VAT
14
Hex socket screw M5x16
AP8152268
£1,88 Unit Price incl. VAT
15
Rear reflector, red
AP8224164
£11,33 Unit Price incl. VAT
16
Support
GU06439200
£13,40 Unit Price incl. VAT
17
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
18
Self-tapping screw *
AP8150420
£1,88 Unit Price incl. VAT
19
Self-locking nut M5
AP8152306
Not Available
20
Number plate holder support
977421
£7,92 Unit Price incl. VAT
21
Number plate support
AP8149034
£25,42 Unit Price incl. VAT
22
screw
GU98223530
£1,60 Unit Price incl. VAT
23
Flanged nut
GU92650035
£2,35 Unit Price incl. VAT
24
Hex socket screw M5x25
AP8152270
£1,88 Unit Price incl. VAT
25
Rear reflector, red
AP8224164
£11,33 Unit Price incl. VAT
26
Self-locking nut M5
AP8152306
Not Available
