Parts Catalog

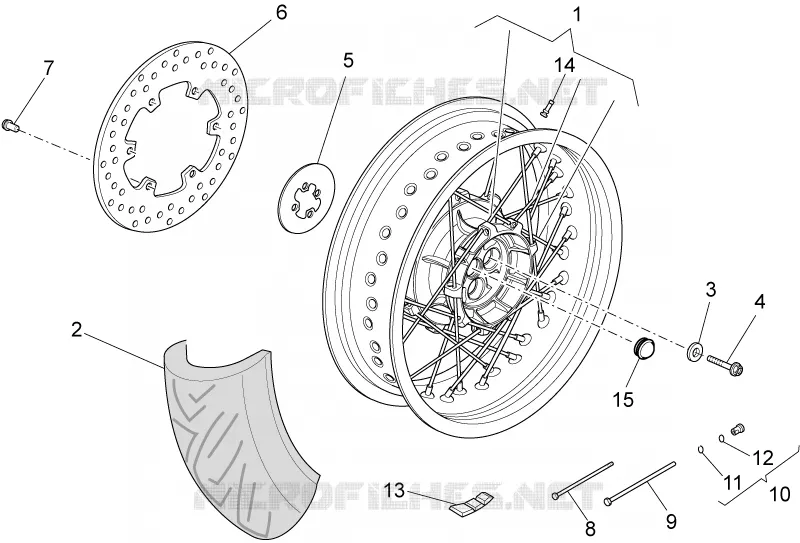

SE Rear wheel
6
Parts Diagram
Parts Catalog
Rear master cylinder
by
Fuel supply
SE Rear wheel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Rear wheel 5,5x17
884078
Not Available
1
Rear wheel 5,5x17
884164
£519,17 Unit Price incl. VAT
1
Rear wheel 5,5x17"
978849
Not Available
2
Rear tyre
2B000183
Not Available
2
Rear tyre 180/55 ZR 17"
97718R
Not Available
3
Conical bush
GU05632730
£8,03 Unit Price incl. VAT
4
Screw w/ flange M12x65
GU97202665
£18,66 Unit Price incl. VAT
5
Dust cover ring
977056
£11,42 Unit Price incl. VAT
6
Rear brake disc
GU05635730
£92,17 Unit Price incl. VAT
7
screw
GU30611460
£4,01 Unit Price incl. VAT
8
Short spoke L=147,4mm
887082
£7,38 Unit Price incl. VAT
8
Short spoke
978815
£10,01 Unit Price incl. VAT
9
Long spoke
978816
£7,03 Unit Price incl. VAT
9
Long spoke L=154,9mm
887083
£7,38 Unit Price incl. VAT
10
Nipples L=34
978810
£13,21 Unit Price incl. VAT
11
Snap ring
978811
£2,47 Unit Price incl. VAT
12
O-ring OR2025
GU90706061
£2,47 Unit Price incl. VAT
13
Counterweight
GU14616150
£18,94 Unit Price incl. VAT
14
Tubeless tyre valve
AP8101744
£14,65 Unit Price incl. VAT
15
Cover
978301
£6,60 Unit Price incl. VAT

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
