Engine displacement
250
2
Model
SCARABEO
3
Year
2007
4
Trim
Scarabeo Light E3
5
Parts Catalog
Frame
6

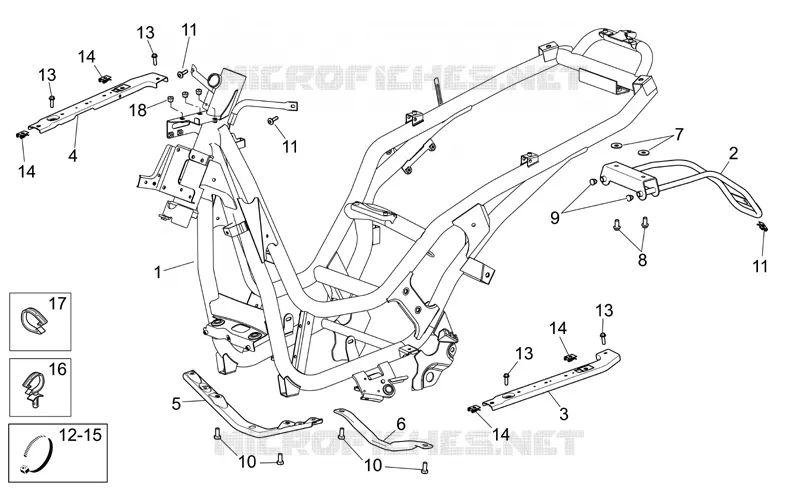

Parts Diagram
Parts Catalog
by
Connecting rod
Frame
1
2
3
4
5
6
7
8
9
10
10
11
11
11
12
13
13
13
13
14
14
14
14
15
16
17
18
1
Frame with electro-coating
853028
Not Available
2
Rear bow
AP8146982
Not Available
3
LH support
AP8154033
Not Available
4
RH support
AP8154032
£18,38 Unit Price incl. VAT
5
Front tank support
AP8154030
Not Available
6
Rear tank support
AP8154031
Not Available
7
Washer 8,4x32x2,5
AP8150019
£0,85 Unit Price incl. VAT
8
Screw w/ flange
AP8152285
£1,88 Unit Price incl. VAT
9
Rubber spacer
AP8144087
£8,65 Unit Price incl. VAT
10
Screw w/ flange
AP8152285
£1,88 Unit Price incl. VAT
11
Hex socket screw M5x12
AP8152267
£2,36 Unit Price incl. VAT
12
Hose clamp
AP8120657
£1,88 Unit Price incl. VAT
13
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
14
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
15
Black hose 98x2*
AP8120422
£1,49 Unit Price incl. VAT
16
Cable-guide
AP8221310
£2,96 Unit Price incl. VAT
17
Fairlead
AP8161157
Not Available
18
Plastic rivet
AP8102671
£0,29 Unit Price incl. VAT

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
