Engine displacement
250
2
Model
SCARABEO
3
Year
2007
4
Trim
Scarabeo Light E3
5
Parts Catalog
Acc. - Top/cases I
6
Parts Diagram
Parts Catalog
Acc. - Windshields
by
Acc. - Top/cases II
Acc. - Top/cases I
1
2
3
4
5
6
7
8
1
Top box supp.plate kit
AP851984
Not Available
2
Top box, black Street C II-47L
CM220312
Not Available
2
Top box, embossed Street C II-47L
CM220301
Not Available
2
Top box, white Street C II-47L
CM220311
Not Available
2
Top box, grey Street C II-47L
CM220309
Not Available
2
Top box, red Street C II-47L
CM220310
Not Available
3
Seat cushion Street C II-47
852313
Not Available
4
Top box lock St-Case
AP8797169
Not Available
5
Top box City-35L
CM220401
Not Available
6
Top box cover,black City-35
CM220818
Not Available
6
Top box cover,red City-35L
CM220815
Not Available
6
Top box cover,white City-35L
CM220817
Not Available
6
Top box cover,grey City-35L
CM220816
Not Available
7
Seat cushion City-35L
852312
Not Available
8
Top box lock City-35L
852953
Not Available

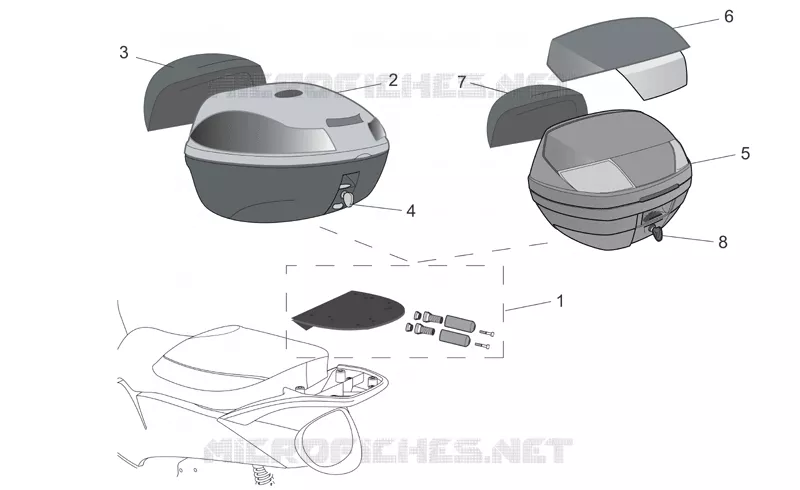

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
