Engine displacement
250
2
Model
SCARABEO
3
Year
2007
4
Trim
Scarabeo Light E3
5
Parts Catalog
RH controls
6
Parts Diagram
Parts Catalog
LH Controls
by
Water cooler
RH controls
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
19
20
1
Front master cilinder
AP8133582
£413,68 Unit Price incl. VAT
1
Front master cilinder
AP8133734
Not Available
2
Brake lever
AP8133811
£53,33 Unit Price incl. VAT
2
Brake lever
AP8118641
Not Available
3
Handgrip pair, black
AP8118657
Not Available
4
Throttle place
AP8118582
£8,51 Unit Price incl. VAT
5
Opening throttle cable
852435
Not Available
6
Closure throttle cable
852436
Not Available
7
Vite TBEI M6x25
AP8152117
£2,63 Unit Price incl. VAT
8
stop Button
AP8127305
Not Available
9
Oil pipe screw
AP8113003
£2,08 Unit Price incl. VAT
10
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
11
Black hose 178x4
AP8120416
£1,00 Unit Price incl. VAT
12
RH lights selector cable
851775
Not Available
13
RH light control cover
851807
Not Available
14
Lower RH light control cover
851809
Not Available
15
Upper RH light control cover
851811
£5,93 Unit Price incl. VAT
16
Start pushbutton
AP8127897
Not Available
17
Cover
AP8127896
£9,02 Unit Price incl. VAT
18
Engine stop-start device
AP8127895
Not Available
19
Hex socket screw M5x25
AP8152270
£1,88 Unit Price incl. VAT
20
Hex socket screw
AP8152269
£1,87 Unit Price incl. VAT

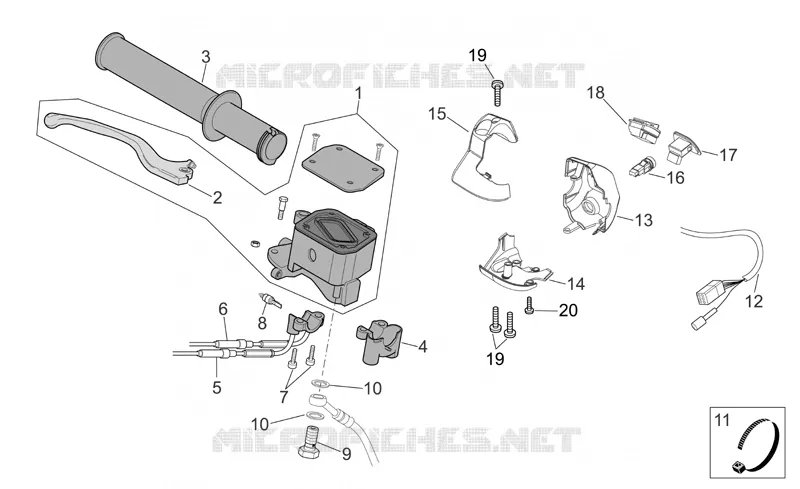

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
